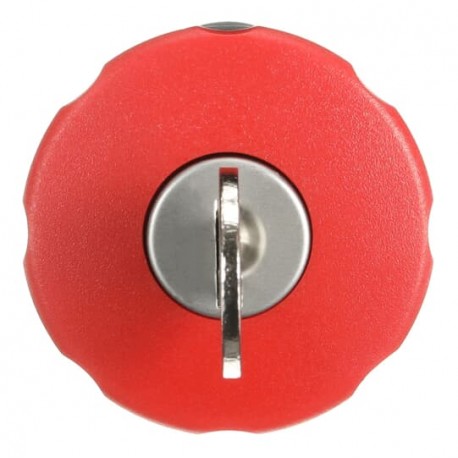

ABB 1SFA619552R1071 1SFA619552R1071 ABB EMERGENCY STOP CE4K1-10R-11 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA619552R1071 ABB EMERGENCY STOP CE4K1-10R-11

1SFA619552R1071

619552

ABB

1 Pcs.

EMERGENCY STOP#CE4K1-10R-11 EMERGENCY MUSHROOM CE4K1-10R-11 CE4K1-10R-11 Emergency stop

Automation > Emergency stop complete
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width0.04 m
Product Net Height0.04 m
Product Net Depth / Length0.103 m
Product Net Weight0.068 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorRed
Actuator TypeMushroom 40 mm
IlluminationNon-illuminated
FunctionMaintained
Sub-FunctionKey release
Key CodeKey code 71
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO1
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree3
Rated Insulation Voltage (Ui)300 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Frequency (f)50 / 60 Hz
Rated Operational Voltage24 ... 300 V
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie)(240 V) 2 A
(220 / 240 V) 2 A
Power LossMaximum 5 W
Mechanical Durability50000 cycle
Connecting CapacityFlexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection TypeScrew Clamp
Terminal TypeScrew Terminals
Tightening Torque0.8 N·m
Wire Stripping Length6 mm
Technical UL/CSA
Connecting Capacity UL/CSA1x 22...14 AWG
2x 22...14 AWG
Environmental
Degree of ProtectionFront IP66
Front IP67
Front IP69K
Terminals IP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP315b49b3-7196-47fd-8071-6af5aa9dfab2 Sweden
Simplified SCIP0039b5ac-8929-4db8-aabf-b3e9f1900f58 Germany
090b9a0b-781b-419b-b439-64e391e9b55a Croatia
c7e86632-b50c-4da1-9f06-a5b38ea1b199 Czech Republic
9c83f91d-3696-42cc-b03b-c96455576802 Denmark
d4d031fe-14a8-43fc-a47d-830f5e684eff Germany
591155dc-0cbf-459e-9547-7e70eb584970 Spain
36bf062a-a12d-488a-ad6d-a903e7bd7d3c Belgium
c4e5a137-45d2-4603-b612-923a10a76a4c France
fff29b5e-406e-4d4e-aef9-3288fa3d7982 Netherlands
a81a4c0f-4fe2-4bbf-8558-916796bfca93 Poland
a5705436-afdc-44fd-a638-bc529995ebb4 Sweden
bdb2399f-4085-4dc9-bd98-ada1c6788008 Portugal
37d8924b-2f00-4859-a14f-5b07cd3eee4e Bulgaria
dc7d17d5-58a5-4103-8960-7fe178782575 Germany
b21e4f92-8923-4480-8a0d-d4874e8071f6 Italy
8a96d733-fb0f-4252-90fb-cebfce0798b7 Belgium
d7779ce0-14b5-4717-9b11-a28f7e562bf0 Norway
035d6d13-cf92-4d00-a9d8-abc4db92e22a Finland
f9fd8544-5d6d-41aa-b6da-9ac10151d04b Poland
f93951b0-ac8b-431b-9697-2817428ef48b Germany
5863eb34-d438-429e-96e3-c80edbc77afb France
c32ca307-e621-4fee-80e8-f1114e1b02b9 Germany
26438e26-96b3-452c-94d0-c665da8c4e7f Hungary
6e76912e-91ea-46fd-a531-e82f8c137c21 Poland
1d5c55ba-64be-49b0-85a7-c98afa805e87 Hungary
cb492cfd-648e-44b1-bf16-ff3ee6bfd9e5 Greece
bc2f286e-1a35-4b20-b60b-cecbc81cbf33 Estonia
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCN54150
CQC CertificateCQC2003010305054693
cULus CertificateUL_E496500-20171020
cURus CertificateUL_E496500-20171020
Declaration of Conformity - CCC2020980305001187
Declaration of Conformity - CE2CMT2019-005802
Declaration of Conformity - UKCA2CMT2020-006122
DNV GL Certificate9AKK107046A3749
EAC CertificateEAC RU C-CN.ME77.B.00537/19
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width0.165 m
Package Level 1 Depth / Length0.09 m
Package Level 1 Height0.045 m
Package Level 1 Gross Weight0.07 kg
Package Level 1 EAN7320500308837
External Classifications and Standards
Object Classification CodeS
ETIM 6EC002034 - Emergency stop complete
ETIM 7EC002034 - Emergency stop complete
ETIM 8EC002034 - Emergency stop complete
eClassV11.0 : 27371244
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2313550
E-Number (Norway)4372825
E-Number (Sweden)3711528

ETIM for 1SFA619552R1071 Low-voltage industrial controls and switchgear (EC002034)
Feature Name Feature Value
Unlocking method (EF001403) Other
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 1
Degree of protection (IP) (EF005474) IP67
Degree of protection (NEMA) (EF011959) Other
Mounting method (EF000003) Surface mounting
With lighting (EF003829) No
Supply voltage lamp (EF006522) 300 V
Hole diameter (EF000079) 22 mm
Connection type auxiliary circuit (EF006820) Screw connection
Diameter cap (EF001423) 40 mm
