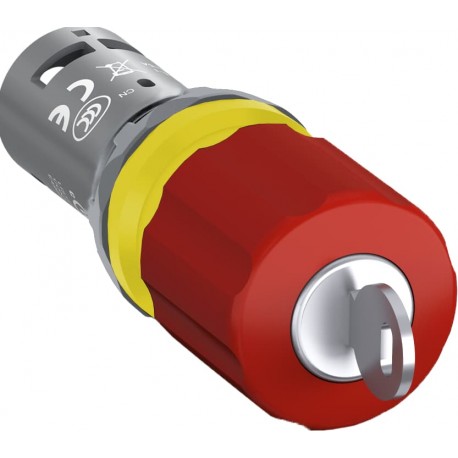

ABB 1SFA619502R1051 1SFA619502R1051 ABB EMERGENCY STOP CE3K1-10R-02 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SFA619502R1051 ABB EMERGENCY STOP CE3K1-10R-02

1SFA619502R1051

619502

ABB

1 Pcs.

EMERGENCY STOP#CE3K1-10R-02 EMERGENCY MUSHROOM CE3K1-10R-02 CE3K1-10R-02 Emergency stop

Automation > Emergency stop complete
elements PDA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number8536508000
Popular Downloads
Data Sheet, Technical Information1SFC151007C02__
Instructions and Manuals1SFC151011M0201
Dimensions
Product Net Width0.03 m
Product Net Height0.03 m
Product Net Depth / Length0.103 m
Product Net Weight0.068 kg
Technical
Ambient Air TemperatureOperation -25 ... +70 °C
Storage -40 ... +85 °C
ColorRed
Actuator TypeMushroom 30mm
IlluminationNon-illuminated
FunctionMaintained
Sub-FunctionKey release
Key CodeKey code 71
Number of Auxiliary Contacts NC2
Number of Auxiliary Contacts NO0
Enclosure Type NEMAType1
Type12
Type13
Type3R
Type4
Type4X
Pollution Degree3
Rated Insulation Voltage (Ui)300 V
Rated Impulse Withstand Voltage (Uimp)6 kV
Rated Frequency (f)50 / 60 Hz
Rated Operational Voltage24 ... 300 V
Rated Operational Current DC-13 (Ie)(24 V) 0.3 A
(125 V) 0.2 A
Rated Operational Current AC-15 (Ie)(240 V) 2 A
(220 / 240 V) 2 A
Power LossMaximum 5 W
Mechanical Durability50000 cycle
Connecting CapacityFlexible with Ferrule 1 x 0.5...1.5 mm²
Flexible with Ferrule 2 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 1 x 0.5...1.5 mm²
Flexible with Insulated Ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5 ...1.5 mm²
Flexible 2 x 0.5 ...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection TypeScrew Clamp
Terminal TypeScrew Terminals
Tightening Torque0.8 N·m
Wire Stripping Length6 mm
Technical UL/CSA
Connecting Capacity UL/CSA1x 22...14 AWG
2x 22...14 AWG
Environmental
Degree of ProtectionFront IP66
Front IP67
Front IP69K
Terminals IP20
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration2CMT2022-006479
RoHS Declaration2CMT2022-006498
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP234ecec3-f3b1-4a97-9c9f-87bb68f707aa Sweden
Simplified SCIPe79be2e2-8415-4a57-a462-ed33fba63ab0 Germany
853d0855-d204-47df-aba9-33ae1e608c6d France
5690669e-1d11-4fb8-9065-b9d40c516150 Germany
8ee0b5a7-3928-4ac9-bcde-b7d368890f85 Croatia
b41be96d-8909-477f-8b30-3c9f1db9cba0 Czech Republic
3e667802-ee22-49fb-a893-e478097494c4 Germany
e697def4-f3a3-4cf2-a9b4-0a21770f1467 Denmark
6d2fdace-3f15-420a-a5a2-e10f81430bc9 Poland
86319ac4-9b12-486e-bd89-6d000c75d70a Norway
d665d6b8-5ec4-432a-b6c7-3d9d79af67e0 Finland
15a84250-c6f3-4186-b7ca-5ce6133f37dd Italy
df92fbbb-9c36-4252-8ded-92d51ed62a06 Germany
19b93161-9ea9-4902-b4cb-81590d238a31 Belgium
fb03c848-c9bf-43fd-8f21-bc4d820dd274 Poland
1c7878a0-18d1-44cd-b8d0-2846d963df1e Greece
3b42c653-13bb-4576-8259-e11c6163c463 Netherlands
82a23779-9f13-4480-b3c6-6025ae0d6c97 Hungary
699872d2-acc0-4a02-a7a2-e187273da0fc Estonia
7fdc155a-c734-427c-a3da-47671f2ac0b7 Bulgaria
65de21be-168f-4b39-a740-4dd76ab68c94 Portugal
ec77fbc6-70b1-47bf-9ac0-e9affe62659c Germany
a07c92b7-f8b6-427d-8f43-82fb9f6ffe59 France
dff36a75-9633-4591-993a-a3915b7bb818 Spain
84c5c005-6eb7-46bd-b2cb-d831ad327831 Belgium
661a87a5-96ab-41f3-887e-e25666d15c4e Hungary
951a86f6-5c6d-45a6-b5a2-dcddaf390cae Sweden
7b217337-bf30-4dbb-b342-cf0099021c76 Poland
Toxic Substances Control Act - TSCA2CMT2023-006523
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
Certificates and Declarations
CB CertificateCN54150
CQC CertificateCQC2003010305054693
cULus CertificateUL_E496500-20171020
cURus CertificateUL_E496500-20171020
Declaration of Conformity - CCC2020980305001187
Declaration of Conformity - CE2CMT2019-005802
Declaration of Conformity - UKCA2CMT2020-006122
DNV GL Certificate9AKK107046A3749
EAC CertificateEAC RU C-CN.ME77.B.00537/19
Container Information
Package Level 1 Unitsbag 1 piece
Package Level 1 Width0.165 m
Package Level 1 Depth / Length0.09 m
Package Level 1 Height0.035 m
Package Level 1 Gross Weight0.07 kg
Package Level 1 EAN7320500308776
External Classifications and Standards
Object Classification CodeS
ETIM 6EC002034 - Emergency stop complete
ETIM 7EC002034 - Emergency stop complete
ETIM 8EC002034 - Emergency stop complete
eClassV11.0 : 27371244
UNSPSC39122216
IDEA Granular Category Code (IGCC)5212 >> Push button for distribution board
E-Number (Finland)2313532
E-Number (Norway)4372750
E-Number (Sweden)3711510
