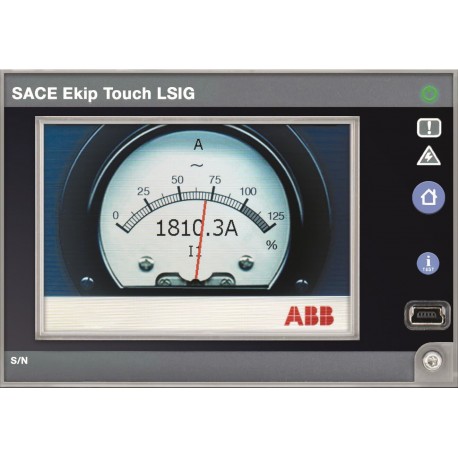

1SDA074199R1 ABB EKIP TOUCH LSIG E1.2..E6.2
1SDA074199R1
074199
ABB
1 Pcs.
Automation > Shunt release (for power circuit breaker)
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB EKIP TOUCH LSIG E1.2..E6.2 modules act as advanced touchscreen electronic trip units utilized within heavy-duty air circuit breakers to monitor, record, and protect electrical distribution networks. They offer comprehensive protection features alongside diagnostic analytics to ensure optimal electrical infrastructure safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZEAETLSIG
- EAN: 8015644781323
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Weight: 0.2 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 125 mm
- Package Level 1 Height: 185 mm
- Package Level 1 Depth / Length: 225 mm
- Package Level 1 Gross Weight: 1 kg
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEAETLSIG |
| EAN | 8015644781323 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Weight | 0.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 125 mm |
| Package Level 1 Height | 185 mm |
| Package Level 1 Depth / Length | 225 mm |
| Package Level 1 Gross Weight | 1 kg |
| Package Level 1 EAN | 8015644781323 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2 |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | E1.2, E2.2, E4.2, E6.2 |
| Suitable for Product Class | SACE Emax 2 |
| Technical | |
| Configuration Type | Loose or configurable |
| Current Type | AC |
| Release | Ekip Touch LSIG |
| Standards | IEC |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| 9AKK106713A5902 | |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH001000R0508 |
| External Classifications and Standards | |
| ETIM 9 | EC001023 - Shunt release (for power circuit breaker) |
| ETIM 10 | EC001023 - Shunt release (for power circuit breaker) |
| IDEA Granular Category Code (IGCC) | 4879 >> Shunt release (for power circuit breaker) |
| Object Classification Code | Q |
| UNSPSC | 39121601 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370418 |
