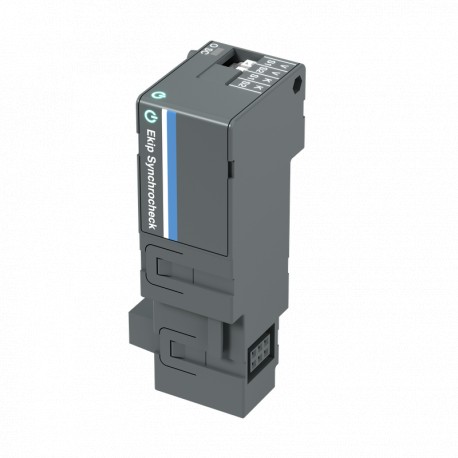

1SDA074183R1 ABB EKIP SYNCHROCHECK E1.2...E6.2
1SDA074183R1
074183
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA074183R1 ABB EKIP SYNCHROCHECK E1.2...E6.2 operates as a specialized synchronization monitoring relay used in power automation panels to verify phase, frequency, and voltage parity prior to parallel generator connection. Such devices protect electrical infrastructure from out-of-phase switching transients during busbar tie operations. Physical dimensions and compliance tracking data for this component are provided below.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZEASYNCHK
- EAN: 8015644781163
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 120 mm
- Product Net Height: 155 mm
- Product Net Depth / Length: 190 mm
- Product Net Weight: 0.22 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 120 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEASYNCHK |
| EAN | 8015644781163 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 155 mm |
| Product Net Depth / Length | 190 mm |
| Product Net Weight | 0.22 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 155 mm |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Gross Weight | 0.25 kg |
| Package Level 1 EAN | 8015644781163 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT7-XT7M, E1.2, E2.2, E4.2, E6.2 |
| Suitable for Product Class | SACE Tmax XT, SACE Emax 2 |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| 1SDC210100D0204 | |
| Declaration of Conformity - CE | 9AKK106713A5546 |
| 9AKK106713A5902 | |
| 9AKK106713A5545 | |
| 9AKK106713A5544 | |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH001000R0513 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
