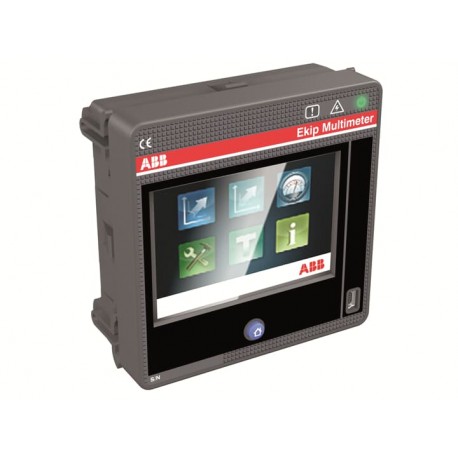

1SDA074192R1 ABB EKIP MULTIMETER E1.2...E6.2
1SDA074192R1
074192
ABB
1 Pcs.
Automation > Accessories/spare parts for low-voltage switch technology
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1SDA074192R1 ABB EKIP MULTIMETER E1.2...E6.2 operates as a digital measurement and display unit typically mounted on circuit breakers to monitor key electrical parameters like current, voltage, and power in complex switchgear installations. Operators rely on these interface modules for real-time diagnostics and local system data logging.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Order Code US and Canada: ZEAMM
- E-Number (Sweden): 3186275
- EAN: 8015644781255
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 96 mm
- Product Net Height: 96 mm
- Product Net Depth / Length: 20.7 mm
- Product Net Weight: 0.2 kg
- Gross Weight: 0.276 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 105 mm
- Package Level 1 Height: 95 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | ZEAMM |
| E-Number (Sweden) | 3186275 |
| EAN | 8015644781255 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 96 mm |
| Product Net Height | 96 mm |
| Product Net Depth / Length | 20.7 mm |
| Product Net Weight | 0.2 kg |
| Gross Weight | 0.276 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 105 mm |
| Package Level 1 Height | 95 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Gross Weight | 0.276 kg |
| Package Level 1 EAN | 8015644781255 |
| Additional Information | |
| Product Main Type | Accessories for Emax 2, Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Suitable For | XT7-XT7M, E1.2, E2.2, E4.2, E6.2 |
| Suitable for Product Class | SACE Tmax XT, SACE Emax 2 |
| Technical | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Standards | IEC |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| 1SDC210100D0204 | |
| Declaration of Conformity - CE | 1SDL000165R0019 |
| 1SDL000165R0020 | |
| 1SDL000165R0021 | |
| 1SDL000165R0022 | |
| Instructions and Manuals | 1SDH001000R0520 |
| External Classifications and Standards | |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 10 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| Object Classification Code | P |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
