View larger
Images are for illustrative purposes only. Please refer to data sheet for details

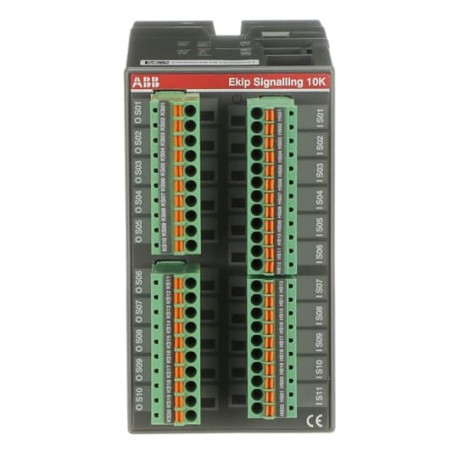

1SDA074171R1 ABB EKIP 10K E1.2...E6.2
1SDA074171R1
074171
ABB
1 Pcs.
EKIP 10K E1.2...E6.2
SIGNAL MODULE Ekip 10K-E1.2/E6.2
EKIP 10K E1.2..E6.2-Tmax XT
Automation > Accessories/spare parts for low-voltage switch technology
Accessories E1.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Environmental | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Ordering | |
| Order Code US and Canada | ZEA10K |
| E-Number (Sweden) | 3186269 |
| EAN | 8015644781040 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 120 mm |
| Product Net Height | 155 mm |
| Product Net Depth / Length | 190 mm |
| Product Net Weight | 0.22 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 120 mm |
| Package Level 1 Height | 155 mm |
| Package Level 1 Depth / Length | 190 mm |
| Package Level 1 Gross Weight | 0.25 kg |
| Package Level 1 EAN | 8015644781040 |
| Additional Information | |
| Configuration Type | Loose or configurable |
| Order Multiple | 1 piece |
| Product Main Type | Accessories for Emax 2, Accessories for Tmax XT |
| Product Name | Accessory |
| Product Type | Accessory |
| Standards | IEC |
| Suitable For | XT7-XT7M, E1.2, E2.2, E4.2, E6.2 |
| Suitable for Product Class | SACE Tmax XT, SACE Emax 2 |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| 1SDC210100D0204 | |
| Declaration of Conformity - CE | 1SDL000165R0019 |
| 1SDL000165R0020 | |
| 1SDL000165R0021 | |
| 1SDL000165R0022 | |
| Instructions and Manuals | 1SDH001318R0002 |
| Classifications | |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39122221 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371392 |
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
