EG1605 1STQ005333B0000 ABB RACK FRAME C FOR SERVER ENCL 1600 HXW
EG1605
1STQ005333B0000
ABB
1 Pcs.
Automation > Mounting accessories (switchgear cabinet)
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

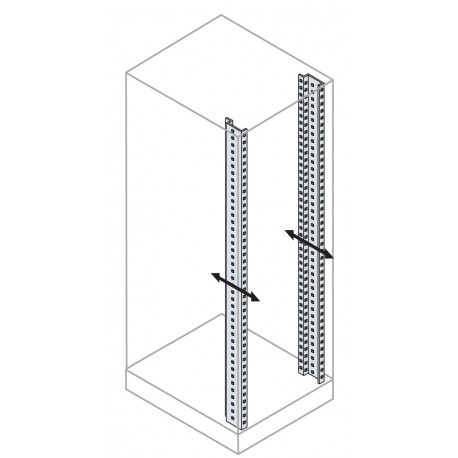

An ABB rack frame, designated by part number EG1605, provides structural housing for 19-inch rack-mounted equipment inside automation enclosures. Server and control enclosure frames are fundamental components used to build modular electronics racks for industrial data and control systems.
Specific pricing, availability, and lead times are confirmed per enquiry through an RFQ.
- Sub-Function 3: 482.6 mm (19 inch) mounting set
- Suitable For: IS2 Enclosures for Automation
- Suitable for Product Class: Control and Automation Board
- Accessory Type: 13. 19" rack structure
- Product Type: 5B5B30B350
- Options Provided: 3. Cranked shaped uprights, Brackets, Crosspieces
- Remarks: ETIM
- Surface Finishing: Orange Peel, RAL 7035
- Material: Pickled steel sheet
- RoHS Declaration: 1STC860065
- RoHS Date: 20140108
- WEEE Category: Product Not in WEEE Scope
- Environmental Information: 1STC804013D0209
- Product Net Width: 25 mm
- Product Net Height: 1499 mm
- Product Net Depth / Length: 93 mm
More info
▲| Technical | |
|---|---|
| Sub-Function 3 | 482.6 mm (19 inch) mounting set |
| Suitable For | IS2 Enclosures for Automation |
| Suitable for Product Class | Control and Automation Board |
| Accessory Type | 13. 19" rack structure |
| Product Type | 5B5B30B350 |
| Options Provided | 3. Cranked shaped uprights, Brackets, Crosspieces |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Pickled steel sheet |
| Material Compliance | |
| RoHS Declaration | 1STC860065 |
| RoHS Date | 20140108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 25 mm |
| Product Net Height | 1499 mm |
| Product Net Depth / Length | 93 mm |
| Product Net Weight | 6.380 kg |
| Reference Depth/Length | 300 mm |
| 400 mm | |
| 500 mm | |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| Reference Height | 1600 mm |
| Reference Width | 400 mm |
| 600 mm | |
| 800 mm | |
| 1000 mm | |
| 1200 mm | |
| 1600 mm | |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 6.380 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0007 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC002625 - Mounting accessories (enclosure/cabinet) |
| ETIM 10 | EC002625 - Mounting accessories (enclosure/cabinet) |
| eClass | V11.1 : 27182807 |
| Standards | See code for structure |
