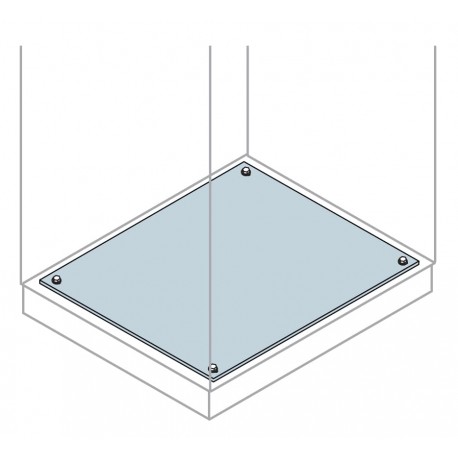

ABB 1STQ005427B0000 1STQ005427B0000 ABB FIXED FLANGES IS2 800X300MM (HXW) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1STQ005427B0000 ABB FIXED FLANGES IS2 800X300MM (HXW)

1STQ005427B0000

005427

ABB

1 Pcs.

FIXED FLANGES IS2 800X300MM (HXW) IS2 Blind cover cable entry 800x300 Control and Automation Board W 800 mm H 1400 mm D 300 mm

Automation > Gland plate for small distribution boards/switchgear cabinets
Automation and Control enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as an Abb 1STQ005427B0000 fixed flanges is2 800x300mm (hxw), this component provides reliable, sealed base entry for industrial automation cabinets. Fixed IP55-rated flanges are deployed where high protection classes against dust and moisture are mandatory for incoming conductors. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable For: Automation and Control Enclosures (System pro E control) - IS2
  • Suitable for Product Class: Automation and Control Enclosures (System pro E control)
  • Accessory Type: 4. Cable entry flanges
  • Product Type: 5B5B30B310
  • Options Provided: 3. Fixed cable entry flanges IP55
  • Remarks: ETIM
  • Surface Finishing: Orange Peel, RAL 7035
  • Material: Galvanized Steel sheet
  • RoHS Declaration: 9AKK108470A5607
  • RoHS Date: 20250108
  • REACH Declaration: 9AKK108470A5605
  • REACH Information: False - does not contain substances > 0.1 mass percentage
  • REACH Date: 20250108
  • WEEE Category: Product Not in WEEE Scope
  • Degree of Protection: acc. to IEC 60529 IP55
  • Environmental Information: 1STC804013D0209

More info

▲
Technical
Suitable ForAutomation and Control Enclosures (System pro E control) - IS2
Suitable for Product ClassAutomation and Control Enclosures (System pro E control)
Accessory Type4. Cable entry flanges
Product Type5B5B30B310
Options Provided3. Fixed cable entry flanges IP55
RemarksETIM
Design
Surface FinishingOrange Peel, RAL 7035
MaterialGalvanized Steel sheet
Material Compliance
RoHS Declaration9AKK108470A5607
RoHS Date20250108
REACH Declaration9AKK108470A5605
REACH InformationFalse - does not contain substances > 0.1 mass percentage
REACH Date20250108
WEEE CategoryProduct Not in WEEE Scope
Environmental
Degree of Protectionacc. to IEC 60529 IP55
Environmental Information1STC804013D0209
Dimensions
Product Net Width633 mm
Product Net Height10 mm
Product Net Depth / Length240 mm
Product Net Weight1.924 kg
Reference Depth/Length300 mm
Reference Height1400 mm
1600 mm
1800 mm
2000 mm
2200 mm
Reference Width800 mm
Ordering
Package Level 1 Unitsbox 1 piece
Package Level 1 Gross Weight1.925 kg
Certificates and Declarations
Declaration of Conformity - CE1STC860113
Installation
Instructions and Manuals1STM604121R0008
Mounting TypeKit
Pre assembled
Popular Downloads
Data Sheet, Technical Information1STC804013D0209
External Classifications and Standards
ETIM 9EC000211 - Gland plate for enclosure/cabinet
ETIM 10EC000211 - Gland plate for enclosure/cabinet
eClassV11.1 : 27142421
StandardsNEMA 1, 12
