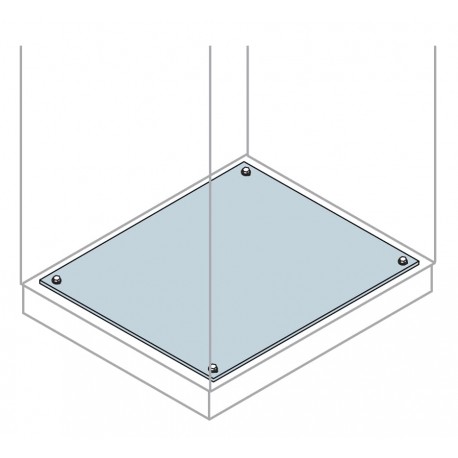

1STQ005426B0000 ABB FIXED FLANGES IS2 600X300MM (HXW)
1STQ005426B0000
005426
ABB
1 Pcs.
Automation > Gland plate for small distribution boards/switchgear cabinets
Automation and Control enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1STQ005426B0000 ABB FIXED FLANGES IS2 600X300MM (HXW) by Abb is a fixed cable entry flange engineered for industrial automation enclosures and control system distribution boards. These structural components provide organized routing and mechanical protection for incoming power and control cables while maintaining overall cabinet sealing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Suitable For: Automation and Control Enclosures (System pro E control) - IS2
- Suitable for Product Class: Automation and Control Enclosures (System pro E control)
- Accessory Type: 4. Cable entry flanges
- Product Type: 5B5B30B310
- Options Provided: 3. Fixed cable entry flanges IP55
- Remarks: ETIM
- Surface Finishing: Orange Peel, RAL 7035
- Material: Galvanized Steel sheet
- RoHS Declaration: 9AKK108470A5607
- RoHS Date: 20250108
- REACH Declaration: 9AKK108470A5605
- REACH Information: False - does not contain substances > 0.1 mass percentage
- REACH Date: 20250108
- WEEE Category: Product Not in WEEE Scope
- Degree of Protection: acc. to IEC 60529 IP55
- Environmental Information: 1STC804013D0209
More info
▲| Technical | |
|---|---|
| Suitable For | Automation and Control Enclosures (System pro E control) - IS2 |
| Suitable for Product Class | Automation and Control Enclosures (System pro E control) |
| Accessory Type | 4. Cable entry flanges |
| Product Type | 5B5B30B310 |
| Options Provided | 3. Fixed cable entry flanges IP55 |
| Remarks | ETIM |
| Design | |
| Surface Finishing | Orange Peel, RAL 7035 |
| Material | Galvanized Steel sheet |
| Material Compliance | |
| RoHS Declaration | 9AKK108470A5607 |
| RoHS Date | 20250108 |
| REACH Declaration | 9AKK108470A5605 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20250108 |
| WEEE Category | Product Not in WEEE Scope |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP55 |
| Environmental Information | 1STC804013D0209 |
| Dimensions | |
| Product Net Width | 433 mm |
| Product Net Height | 10 mm |
| Product Net Depth / Length | 240 mm |
| Product Net Weight | 1.392 kg |
| Reference Depth/Length | 300 mm |
| Reference Height | 1400 mm |
| 1600 mm | |
| 1800 mm | |
| 2000 mm | |
| 2200 mm | |
| Reference Width | 600 mm |
| Ordering | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Gross Weight | 1.393 kg |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1STC860113 |
| Installation | |
| Instructions and Manuals | 1STM604121R0008 |
| Mounting Type | Kit |
| Pre assembled | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1STC804013D0209 |
| External Classifications and Standards | |
| ETIM 9 | EC000211 - Gland plate for enclosure/cabinet |
| ETIM 10 | EC000211 - Gland plate for enclosure/cabinet |
| eClass | V11.1 : 27142421 |
| Standards | NEMA 1, 12 |
