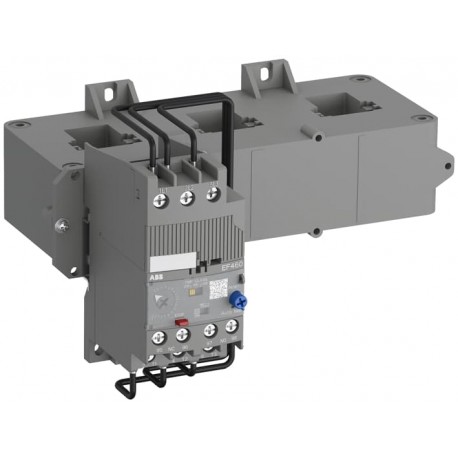

1SAX721001R1101 ABB EF460-500 Electronic Overload Relay
1SAX721001R1101
721001
ABB
1 Pcs.
Automation > Electronic overload relay
Electronic Overload
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for massive industrial motor setups, the ABB 1SAX721001R1101 EF460-500 electronic overload relay delivers heavy-duty thermal protection against high current anomalies. Large-scale overload units monitor high-amperage circuits to prevent motor winding degradation and unexpected equipment failure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85364900
- Data Sheet, Technical Information: 2CDC107045D0201
- Instructions and Manuals: 2CDC107033M6803
- Instructions and Manuals (Part 2): 1SAC200017M0002
- Ex Operating Instructions: 2CDC107043M6801
- Time-Current Characteristic Curve: 1SAX100509F0002
- CAD Dimensional Drawing: 2CDC001079B0201
- Dimension Diagram: 1SAX700402F0001
- Product Net Width: 186 mm
- Product Net Height: 103.5 mm
- Product Net Depth / Length: 152.13 mm
- Product Net Weight: 1.182 kg
- Setting Range: 150 ... 500 A
- Rated Operational Voltage: Auxiliary Circuit 600 V AC/DC
- Rated Operational Current (I e ): 500 A
More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC107045D0201 |
| Instructions and Manuals | 2CDC107033M6803 |
| Instructions and Manuals (Part 2) | 1SAC200017M0002 |
| Ex Operating Instructions | 2CDC107043M6801 |
| Time-Current Characteristic Curve | 1SAX100509F0002 |
| 1SAX100510F0001 | |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAX700402F0001 |
| Dimensions | |
| Product Net Width | 186 mm |
| Product Net Height | 103.5 mm |
| Product Net Depth / Length | 152.13 mm |
| Product Net Weight | 1.182 kg |
| Technical | |
| Setting Range | 150 ... 500 A |
| Rated Operational Voltage | Auxiliary Circuit 600 V AC/DC |
| Main Circuit 1000 V AC | |
| Rated Operational Current (Ie) | 500 A |
| Rated Frequency (f) | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Main Circuit 50 Hz | |
| Main Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp) | Auxiliary Circuit 6 kV |
| Main Circuit 8 kV | |
| Rated Insulation Voltage (Ui) | 1000 V |
| Number of Poles | 3P |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Protected Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Auxiliary Circuit NC 6 A |
| Auxiliary Circuit NO 6 A | |
| Rated Operational Current AC-15 (Ie) | (240 V) NC 3 A |
| (240 V) NO 3 A | |
| (400 V) NC 1.1 A | |
| (400 V) NO 1.1 A | |
| (500 V) NC 0.75 A | |
| (500 V) NO 0.75 A | |
| Rated Operational Current DC-13 (Ie) | (125 V) NC 0.55 A |
| (125 V) NO 0.5 A | |
| (24 V) NC 1.5 A | |
| (24 V) NO 1.5 A | |
| (250 V) NC 0.27 A | |
| (250 V) NO 0.27 A | |
| (60 V) NC 0.55 A | |
| (60 V) NO 0.55 A | |
| Degree of Protection | Housing IP20 |
| Main Circuit Terminals IP00 | |
| Pollution Degree | 3 |
| Connecting Capacity Auxiliary Circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm² |
| Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm² | |
| Flexible 1/2x 0.75 ... 2.5 mm² | |
| Rigid 1/2x 1 ... 4 mm² | |
| Tightening Torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length | Auxiliary Circuit 9 mm |
| Recommended Screw Driver | Auxiliary Circuit Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Power Loss | at Rated Operating Conditions per Pole 0.005 ... 0.054 W |
| Suitable For | AF400 |
| AF460 | |
| Standards | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Contact Rating UL/CSA | (NC:) B600 |
| (NC:) Q600 | |
| (NO:) B600 | |
| (NO:) Q600 | |
| Connecting Capacity Auxiliary Circuit UL/CSA | Flexible 1/2x 16-10 AWG |
| Stranded 1/2x 18-10 AWG | |
| Tightening Torque UL/CSA | Auxiliary Circuit 7 ... 1 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +70 °C |
| Operation Compensated -25 ... +70 °C | |
| Storage -25 ... +70 °C | |
| Ambient Air Temperature Compensation | Yes |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | 3g 3 ... 150 Hz |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006525 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2021-006202 |
| RoHS Declaration | 1SVD981001-4401 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| Environmental Information | 1SAC200103H0001 |
| Certificates and Declarations | |
| ABS Certificate | 1SAA941002-0102 |
| ATEX Certificate | 1SAA941004-3901 |
| BV Certificate | 1SAA941002-0201 |
| CB Certificate | 1SAA964009-2001 |
| CCC Certificate | 2024010304654681 |
| CCS Certificate | 1SAA941001-0901 |
| CQC Certificate | CQC2012010309537805 |
| Declaration of Conformity - CCC | 2020980309000290 |
| Declaration of Conformity - CE | 1SAD101100-3601 |
| Declaration of Conformity - UKCA | 1SAD201100-3601 |
| DNV Certificate | 1SAA941003-0302 |
| EAC Certificate | 1SAA941003-2701 |
| IECEx Certificate | 1SAA941000-4001 |
| LR Certificate | 1SAA941002-0501 |
| RINA Certificate | RINA_ELE376813CS |
| RMRS Certificate | 1SAA941001-0701 |
| UL Certificate | E48139-19990512 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 140 mm |
| Package Level 1 Height | 199 mm |
| Package Level 1 Depth / Length | 195 mm |
| Package Level 1 Gross Weight | 1.554 kg |
| Package Level 1 EAN | 4013614487415 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC001080 - Electronic overload relay |
| ETIM 10 | EC001080 - Electronic overload relay |
| eClass | V11.0 : 27371502 |
| UNSPSC | 39122330 |
| IDEA Granular Category Code (IGCC) | 5365 >> Electronic overload relay |
| E-Number (Finland) | 3707463 |
| E-Number (Norway) | 4116705 |
| E-Number (Sweden) | 3210294 |
