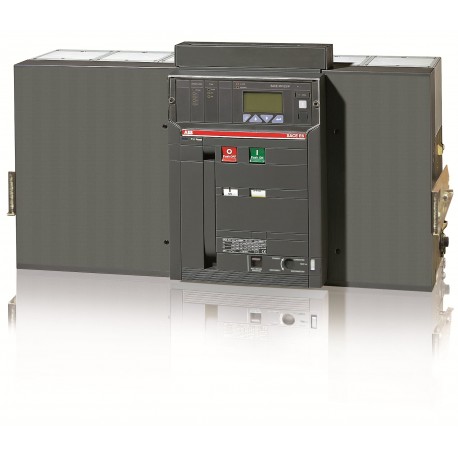

1SDA057028R1 ABB E6H 6300 PR122/P-LSI In 6300A 3p W MP
1SDA057028R1
057028
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A withdrawable air circuit breaker, specifically the ABB E6H 6300 PR122/P-LSI In 6300A 3p W MP, provides high-capacity current interruption and system protection for massive electrical distribution grids. Such equipment serves as the primary defense in industrial switchgear lineups, preventing catastrophic damage from massive fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: be64fa01-b145-4891-93f5-504fb5e64364 Italy
- Simplified SCIP: cc43415a-4677-42ff-b18b-3bbd4caaed51 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644583682
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 810 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 116 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | be64fa01-b145-4891-93f5-504fb5e64364 Italy |
| Simplified SCIP | cc43415a-4677-42ff-b18b-3bbd4caaed51 Germany |
| cf1004af-502b-4eef-b127-d12e7777fa72 Germany | |
| 74e9b3aa-5d92-44bb-b83e-37b793dd8776 Sweden | |
| 5440ed72-78ad-4ae5-80a8-14695c8572ed France | |
| da58264b-65fb-42e4-b0d6-99f540dc19c6 France | |
| 13e17fb4-ce45-4e35-8fa0-1fd5e9c7a38f Bulgaria | |
| 38d13053-fdd8-4561-b008-7cf9c4899906 Belgium | |
| 28285fdd-ceb9-40bc-8ab7-167cf0f3877b Hungary | |
| d97bcbd4-90b7-4d4a-9a09-b09f082351c8 Spain | |
| 617e98ad-63eb-48d0-8ce7-4cd8fdd4efe3 Germany | |
| 42bbeda8-7a72-4cb1-b7da-d7d72ddd5468 Poland | |
| 4ed17380-a9bb-40d6-8b80-601f9c6b345b Norway | |
| 0bcea82b-adc9-4b4b-80b1-7f883675077f Finland | |
| 0c785a0e-1fed-4cc9-9e8b-ef610ef5d534 Belgium | |
| 908a4eb0-24bf-4164-8e48-b4bf0a689017 Germany | |
| 6d93eadd-5cb3-4d71-a008-203465f9080c Czech Republic | |
| 1b32255b-dd94-484a-9b8c-e94dd02c4a5b Denmark | |
| a4819a96-0d91-463b-9220-bfad43daeada Germany | |
| 11949c9c-6fa8-4c9c-a332-3c46cf724958 Greece | |
| 41f2e694-1fed-489c-85e5-71bead933e5a Portugal | |
| b6c9b218-3f6b-40f3-8ca9-c63a7ca6a79d Croatia | |
| 731fea87-7f22-40e5-8757-e19464642507 Estonia | |
| ba41cb32-4219-4833-a186-2e4bd284eb2c Netherlands | |
| ff90021b-808b-4b55-9b88-6bcdd77565e4 Hungary | |
| d2c4fab5-7eca-4710-ad69-1e0e49c6146b Poland | |
| 6c4e2c6e-d924-4434-9aa1-ea04377b3790 Sweden | |
| 4842de23-6034-4052-b70a-6a4f5d0d8f05 Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644583682 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 810 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 116 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 1000 mm |
| Package Level 1 Gross Weight | 138 kg |
| Package Level 1 EAN | 8015644583682 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 2000 cycle |
| Ue = 500 ... 690 V 1500 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 1100 W |
| Rated Current (In) | 6300 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 6300 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 85 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 6300 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR122/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0017 |
| Instructions and Manuals | 1SDH000460R0002 |
| 1SDH000460R0102 | |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
