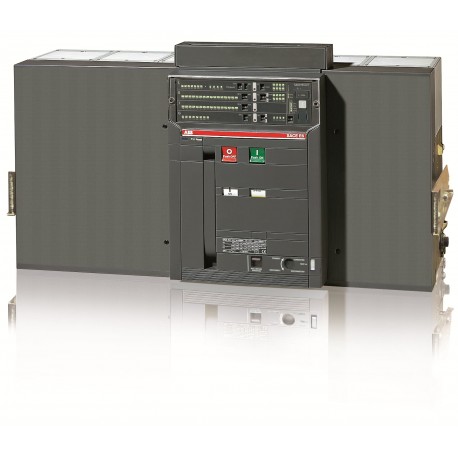

1SDA057026R1 ABB E6H 6300 PR121/P-LSIG In 6300A 3p W MP
1SDA057026R1
057026
ABB
1 Pcs.
E6H 6300 PR121/P-LSIG In=6300A 3p W MP
E6H6300 PR121/P LSIG 3P W MP
Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An industrial air circuit breaker protects ultra-high-capacity electrical distribution grids, managing massive current thresholds and ensuring rapid fault clearance in utility and heavy manufacturing settings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 03b624a1-2d9f-4a70-b2cc-0128471aae4f Italy
- Simplified SCIP: 33b9e562-daaf-46cc-82e1-04dc23aba0fa Belgium
- Environmental Information: 9AKK10103A6076
- EAN: 8015644583668
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 810 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 116 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 03b624a1-2d9f-4a70-b2cc-0128471aae4f Italy |
| Simplified SCIP | 33b9e562-daaf-46cc-82e1-04dc23aba0fa Belgium |
| c14eee1f-18fd-4366-bb4c-88b850cdcb25 Germany | |
| 973d762a-b0ea-473b-b6bc-c1b6cbcaa25a Germany | |
| 0229c5a8-e1da-4d4d-bcf8-a523c463c58d Sweden | |
| 4fe2343c-8481-476b-b48c-f93c744c826e France | |
| a1b980c3-4a11-4586-ba21-52f19ac337be Spain | |
| 6355fb3d-bad0-474e-a5c1-e649183a032e Hungary | |
| 29d83216-1e24-4763-a05b-184100e2edd2 Belgium | |
| 5d608f9a-b916-4739-96fa-695cbfa87f14 Germany | |
| 95762196-638d-4d4f-86db-c9e03c701bdd Denmark | |
| be1ace1e-28c4-44cd-a851-26bf567f27b6 Germany | |
| 518db228-5444-4b41-ab26-c4e97a7250c6 Czech Republic | |
| d698d889-478e-40cd-ac03-56ffa4fd8c26 Poland | |
| d26e9cb1-49e2-4724-ab8d-adb8fd3597b2 Hungary | |
| 54726a76-357c-4b4f-893b-a6ea2159ffa0 Netherlands | |
| d5d38fef-2afc-4bfd-a68b-f6e703539f03 Croatia | |
| 4d24fe70-227a-49f1-ab35-8e03fade1f33 Greece | |
| 6d84ba04-aee2-40fa-a733-e3cc40b971b4 Portugal | |
| 3954a2d0-0d74-4af7-a5d0-06ba6d316293 Estonia | |
| 46b3f662-85e9-4bdc-9ba1-eb9b68d6173f Bulgaria | |
| 2a429a13-14f5-4fae-8b99-7767ebeefdf1 Sweden | |
| 846a2592-fb38-4728-aebf-bf2460ba6ee8 Poland | |
| ef072f0f-e288-4594-8e38-2702093d7131 France | |
| a460f1b0-8b97-45e9-a642-6419124f4557 Germany | |
| a7519ba0-06ba-45cb-beb9-662d8ac16469 Poland | |
| 65756650-0d6e-48d7-988c-bc7fd87cd62b Norway | |
| 4d7920f0-b175-4272-8fdc-eb0dc7fb6cd4 Finland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644583668 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 810 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 116 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 1000 mm |
| Package Level 1 Gross Weight | 138 kg |
| Package Level 1 EAN | 8015644583668 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 2000 cycle |
| Ue = 500 ... 690 V 1500 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 1100 W |
| Rated Current (In) | 6300 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 6300 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 85 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 6300 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0017 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
