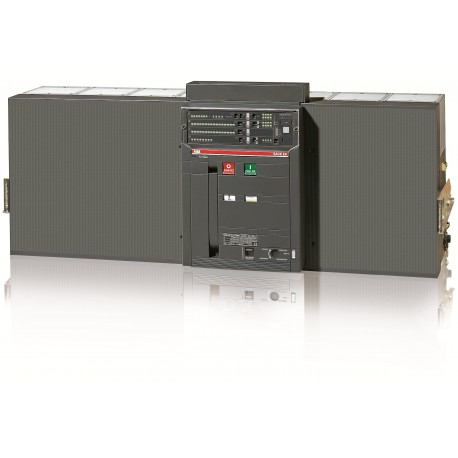

ABB 1SDA057002R1 1SDA057002R1 ABB E6H 5000 PR121/P-LSIG In 5000A 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA057002R1 ABB E6H 5000 PR121/P-LSIG In 5000A 4p W MP

1SDA057002R1

057002

ABB

1 Pcs.

E6H 5000 PR121/P-LSIG In=5000A 4p W MP E6H5000 PR121/P LSIG 4P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP35eb2991-6356-4a2c-a3af-ccccfe09a2c4 Italy
Simplified SCIP9a74207b-15da-4136-8303-24f5399e171e Germany
d96642da-f626-4087-ae1c-2b4faba25d9f Sweden
702a8aef-27b8-4e55-96ec-a57604ffc639 Germany
8d3a70b5-fc35-4944-b263-9a5b425b59f9 France
63183dce-f350-401c-93fa-018b1454355d Belgium
5a47daf3-5a07-4bbe-bbca-3c81dccc22ec Hungary
26c4ed1e-3d1e-4fa2-9e77-f326ba057529 Spain
15f97882-a93b-4ae5-941f-25744a371a39 Netherlands
63d30f99-a659-43b4-b963-26c5203db1f4 Greece
a6fdbe0e-0b75-4e18-b53c-75b3d1942259 Estonia
7db0c0a4-00aa-4514-a667-faa156ca34fb Hungary
9504c059-ef82-449d-b837-ab5239299261 Poland
14df4ee6-592e-4ab2-8169-2cadb75ea672 Sweden
a377fb6e-169a-4bfa-a1b5-74fab596a191 Portugal
d4019db2-7593-440d-b722-990cc02b4cd9 Bulgaria
e2bfc863-2702-4a35-9e79-d1ea096f1852 Croatia
9db38c84-ae90-4b35-835d-310943dcf567 Poland
5a2a3701-a693-4f8a-8390-ae8c6094c055 Germany
4528317e-de31-4502-954a-db3ce595173b Czech Republic
a7580198-2f00-45d9-845f-12969d7d727d France
d8c456b9-6e8c-49e7-b31c-8598ea62e2fd Germany
dee1fa33-5f97-43c2-9080-a23ddb62c7d9 Poland
ccbbccf8-d622-4c64-97c9-ff2f4ac990b4 Norway
43de6ea0-ff97-498f-baaf-c738513a0177 Finland
e6f35e78-71c6-4d1a-8509-c73104bc0755 Belgium
f6a6f45a-3b65-4a97-865b-400648edb5aa Germany
4f6429c7-9ab8-4c65-92cd-16ca196d05dd Denmark
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644583422
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width936 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight134 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1127 mm
Package Level 1 Gross Weight157 kg
Package Level 1 EAN8015644583422
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 3000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles4P
Power Loss700 W
Rated Current (In)5000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)5000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)5000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0017
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
