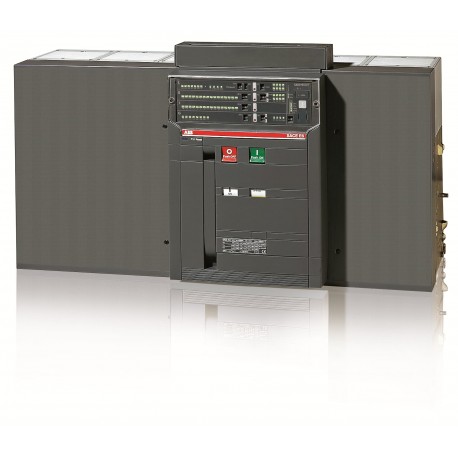

ABB 1SDA056978R1 1SDA056978R1 ABB E6H 5000 PR121/P-LSIG In 5000A 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056978R1 ABB E6H 5000 PR121/P-LSIG In 5000A 3p F HR

1SDA056978R1

056978

ABB

1 Pcs.

E6H 5000 PR121/P-LSIG In=5000A 3p F HR E6H5000 PR121/P LSIG 3P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP753f6a43-886f-4c08-adc2-cd41d7eaf2ea Italy
Simplified SCIPeca1642d-92c6-4e26-a74c-cd5523b9a267 Czech Republic
8a895f74-d91e-4cd0-8176-31a553eccdd5 Germany
e024b1a0-1f93-4c95-b747-6eecc93ef84e Denmark
264c2290-28f9-4e2c-a89b-9753a2831c48 Poland
fd679e69-c416-4938-bc93-c16f92dc91d0 Croatia
dfed6ab9-9bf0-4921-957c-920a41e139ba Estonia
755ba5e2-2efe-43a2-b720-16cfac4103e0 Greece
f57af3a6-1b36-4df8-abd6-f93f246b8072 Portugal
7d798ad6-ee69-4dfa-a9b1-9240ba9cbd1d Sweden
2b332a55-f2a7-46bf-a179-57b200531550 Germany
d389d525-1b4a-49d8-b8fd-a4e09781bd84 Sweden
5e17fee5-3c68-48d6-987d-177c66a7f702 Germany
de48faae-f277-441e-a3f5-f3477548ac12 France
0ba4924b-591f-49d2-9dec-81e135c3e312 France
5de6e113-60ed-4c51-828d-44451751b16f Bulgaria
0a4be2cd-0fad-4ab0-ad15-1e10a12e959d Germany
c5822287-09c1-4b8c-b119-383cfefcff43 Poland
82aaf6fd-7630-4c30-99dc-067d21e04102 Hungary
426336f5-1f8d-45e0-ba26-87be68773d4b Netherlands
b5deb836-da90-475d-b091-c58ca0ffb7c8 Finland
33852de8-a059-4197-97fb-df9cbc793ba5 Germany
0127a5b5-2e89-4641-b31b-66c95a1d6a67 Norway
ea9b78df-e364-48af-b213-8c752822015f Poland
982e4f29-91c1-4009-afd8-07865b7f4530 Hungary
28faf9fc-c7f2-4785-b7cb-1a7fd615c75a Spain
341487ce-232a-48fc-a84c-a9a11c5976de Belgium
3b40f3e6-c87c-4f7b-b1f9-b850a85b9466 Belgium
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644583187
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width782 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight112 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight133 kg
Package Level 1 EAN8015644583187
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 3000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss415 W
Rated Current (In)5000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)5000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 85 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)5000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0017
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
