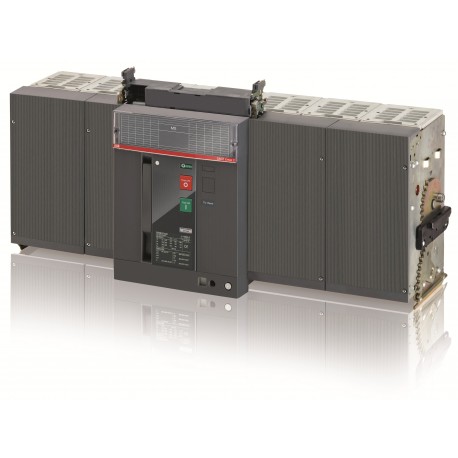

ABB 1SDA073552R1 1SDA073552R1 ABB E6.2X/MS 6300 4P W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073552R1 ABB E6.2X/MS 6300 4P W MP

1SDA073552R1

073552

ABB

1 Pcs.

E6.2X/MS 6300 4P W MP

Connectors > Switch disconnector
Rack "Megamax-Emax"

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A switch disconnector such as the ABB E6.2X/MS 6300 4P W MP acts as a heavy-duty circuit protection and isolation device, designed to safely disconnect high-amperage electrical distribution paths in commercial and industrial power systems. These large multi-pole components are essential for managing main incoming feeds and safeguarding massive infrastructure installations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • Circular Design Principles Recyclability Rate: Design for Closing Resource Loops - Standard EN45555 - 77 %
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • End of Life Instructions: 9AKK108468A2364
  • Group Waste to Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Product Declaration - EPD: 9AKK108468A1905
  • Environmental Information: 9AKK108467A6707
  • REACH Declaration: 9AKK108466A1425
  • RoHS Information: 9AKK108466A1424
  • RoHS Status: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • EAN: 8015644774028
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090
  • Product Net Width: 929 mm
  • Product Net Height: 425 mm

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 77 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2364
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A1905
9AKK108468A1913
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Ordering
EAN8015644774028
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width929 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight134 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1127 mm
Package Level 1 Gross Weight143 kg
Package Level 1 EAN8015644774028
Additional Information
Current TypeAC
Electrical DurabilityUe =< 440 V 2000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])50 %
Number of Poles4
Power Loss1550 W
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
Rated Current (In)6300 A
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 120 kA
for 3 s 100 kA
Rated Uninterrupted Current (Iu)6300 A
Short-Circuit Performance LevelX
StandardsIEC
Sub-typeE6.2
VersionW
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5544
Instructions and Manuals1SDH001000R0002
Classifications
ETIM 7EC000216 - Switch disconnector
ETIM 8EC000216 - Switch disconnector
ETIM 9EC000216 - Switch disconnector (low voltage)
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
