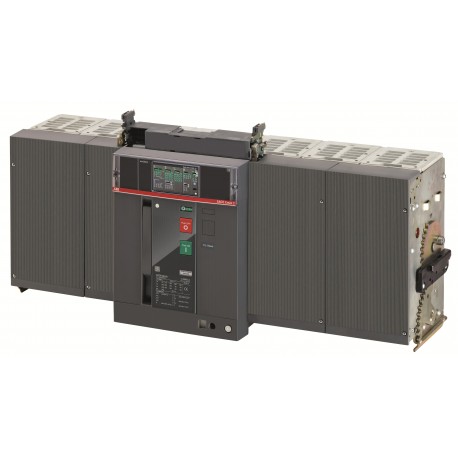

ABB 1SDA073373R1 1SDA073373R1 ABB E6.2V/f 6300 Ekip Dip LSIG 4p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073373R1 ABB E6.2V/f 6300 Ekip Dip LSIG 4p WMP

1SDA073373R1

073373

ABB

1 Pcs.

E6.2V/f 6300 Ekip Dip LSIG 4p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108468A1905
9AKK108468A1913
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 77 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP45026a8a-22a3-4d39-99ad-e927196ff2bf Italy
Simplified SCIP75178ec1-c4d9-4045-94db-94b6106652ed Germany
5f03b5f2-23ca-4e0a-96f5-6f33669b6ad4 Sweden
eb52adbe-a508-4480-9c24-0849b2819104 Germany
30c82b65-7d42-46df-bde2-752c23266779 France
91227807-77af-4bef-8b56-722026bbc928 France
043ca986-8e65-4092-8bdb-fbf442ffeff2 Belgium
41d2c250-ceca-4c84-b09a-5145c3974556 Spain
873e5e21-c7e5-4c0e-b852-fb0cff8aa88d Hungary
f99fccb6-930a-4d40-8e1f-034602462de0 Belgium
6f8b7ff1-c108-4600-84d0-7bbca6abfcc4 Finland
dbd0a347-547e-4841-b509-1b35330e3039 Germany
ce3486c2-e2b6-4992-a523-aec2cc34f493 Norway
41094743-1235-435a-954d-e18d4964155d Poland
fdc6341a-a496-4cc0-9334-1daa11fc3c4c Germany
0ef64336-656e-412e-a165-c9ee30f0e21e Netherlands
3ab80eee-bc5f-4c42-be45-f37d73006f1d Greece
965d9809-d1b0-48ac-b340-00ae13856e78 Portugal
7166d997-a2e7-4e40-ab0d-5547858187a6 Germany
c055c558-4c25-491e-8fac-bf74edd6f462 Denmark
3b75806a-2ee5-445b-86dd-565ce3b56ade Czech Republic
ea300542-3b74-42f3-9fad-26db3970f0d8 Poland
fd828033-b9a2-43bd-8ba1-e4aacb21df49 Bulgaria
a7a9d38c-5d93-4a81-9718-2f08e42f6ab2 Sweden
ebdee7b3-d044-4e05-a733-dabe57191574 Hungary
a8ccd864-15dd-4ac4-bf0e-f443803939ad Poland
9bd48de8-623f-4b72-be37-34ac45d7a1a4 Estonia
c49c0e3c-1d7a-42fc-81ad-6e30dbd67dec Croatia
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZEVYETAC000A000000XX
EAN8015644772239
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width1069 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight148 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1257 mm
Package Level 1 Gross Weight159 kg
Package Level 1 EAN8015644772239
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
CAD Dimensional Drawing1SDH001252R0264
Technical
Connecting Capacity6000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 2000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4 / f
Power Loss1550 W
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 150 kA
(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(525 V AC) 130 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksYes, 690V
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5544
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001060R0107
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA073373R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 6300 A
Rated voltage (EF003977) 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) 150 kA
Overload release current setting (EF002336) 2520.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 3780.0 A
Adjustment range undelayed short-circuit release (EF007131) 9450.0 A
Integrated earth fault protection (EF007296) Yes
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 4
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
