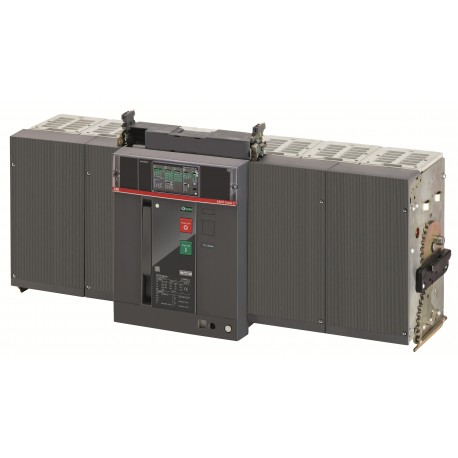

1SDA073282R1 ABB E6.2V 6300 Ekip Dip LSI 4p WMP
1SDA073282R1
073282
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Abb 1SDA073282R1 is an air circuit breaker designed for massive industrial power distribution networks requiring dependable overcurrent protection. Heavy commercial systems utilize these high-capacity drawout circuit breakers to ensure circuit isolation and operational safety.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2364
- Environmental Product Declaration - EPD: 9AKK108468A1905
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 77 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 21a7be20-3208-42f7-8a0d-e0865b3e67a9 Italy
- Simplified SCIP: 3ec119f9-5fc9-438e-8511-10086cb1d630 Norway
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZDVYETAB000A000000XX
- EAN: 8015644771324
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2364 |
| Environmental Product Declaration - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 21a7be20-3208-42f7-8a0d-e0865b3e67a9 Italy |
| Simplified SCIP | 3ec119f9-5fc9-438e-8511-10086cb1d630 Norway |
| 01da6d1a-947a-4655-ad26-3a834d4f7489 Greece | |
| 7733ffe8-368d-4631-a14d-028615496d26 France | |
| fc484465-1302-45ec-b06f-ddc95996f729 Germany | |
| f42cbdea-4555-4abd-804a-9a1b5d2c283d Croatia | |
| c4ba01ff-48cf-43e2-8b5a-d6cc1888c3ac Netherlands | |
| 87cf28b0-6349-473f-8fb1-88a3644dfe45 Finland | |
| 01da6d1a-947a-4655-ad26-3a834d4f7489 Greece | |
| 99ade028-bb98-4a4c-a43b-a55bf50d49e4 Germany | |
| c4ba01ff-48cf-43e2-8b5a-d6cc1888c3ac Netherlands | |
| e9fd51c4-4f63-4dd0-935a-27d632e2af55 Bulgaria | |
| f42cbdea-4555-4abd-804a-9a1b5d2c283d Croatia | |
| 8807748e-6a55-4bf2-b764-285f07d90c5c Germany | |
| 4d4474b0-4704-429c-9b4a-2e73979e6963 Portugal | |
| 0ae6af7c-1fba-4d58-9079-0f3867dad4c4 Hungary | |
| 0cd018c5-48b2-4b27-8b9a-f74355c6d0e4 Czech Republic | |
| 27f53504-6227-4551-a2d6-1eb4ce1b57c5 Poland | |
| 0cd018c5-48b2-4b27-8b9a-f74355c6d0e4 Czech Republic | |
| f318dad1-e530-416b-930d-9855575a8a2e Denmark | |
| 63c1b76e-ed54-403d-99ef-4002fb1ed50e Belgium | |
| d4ec9c2b-2aba-436b-aff5-bf3a9680c74f Germany | |
| b63cf2f0-507a-4100-ad52-745050ba9d7a Sweden | |
| 87cf28b0-6349-473f-8fb1-88a3644dfe45 Finland | |
| 3bc0ba4d-2408-4aff-b876-3c95a686f238 Sweden | |
| 4d4474b0-4704-429c-9b4a-2e73979e6963 Portugal | |
| 39b5901b-6ba2-4db6-bfd0-59dcd6a88dcb Poland | |
| f285ddc7-9d0f-40dc-b896-6dae1d2da077 Poland | |
| 1b4c776c-e467-4101-934c-0430c3aa850e Germany | |
| 5f50df8a-7bef-4bea-94a1-66668e23586f Belgium | |
| f318dad1-e530-416b-930d-9855575a8a2e Denmark | |
| e9fd51c4-4f63-4dd0-935a-27d632e2af55 Bulgaria | |
| fc484465-1302-45ec-b06f-ddc95996f729 Germany | |
| 63c1b76e-ed54-403d-99ef-4002fb1ed50e Belgium | |
| 3ec119f9-5fc9-438e-8511-10086cb1d630 Norway | |
| d4ec9c2b-2aba-436b-aff5-bf3a9680c74f Germany | |
| f285ddc7-9d0f-40dc-b896-6dae1d2da077 Poland | |
| 1b4c776c-e467-4101-934c-0430c3aa850e Germany | |
| b63cf2f0-507a-4100-ad52-745050ba9d7a Sweden | |
| 27f53504-6227-4551-a2d6-1eb4ce1b57c5 Poland | |
| 7733ffe8-368d-4631-a14d-028615496d26 France | |
| 8807748e-6a55-4bf2-b764-285f07d90c5c Germany | |
| 3bc0ba4d-2408-4aff-b876-3c95a686f238 Sweden | |
| 740b2de5-035f-4d3e-92c2-01b2c3cf3305 Hungary | |
| 3a25b735-2b29-4319-93c3-b61ee5a20eea Spain | |
| 1a36bef1-2f6c-457c-8b52-3610519247da Estonia | |
| 5f50df8a-7bef-4bea-94a1-66668e23586f Belgium | |
| 39b5901b-6ba2-4db6-bfd0-59dcd6a88dcb Poland | |
| b050bcf6-e44b-45e3-ba0f-b8c6a8408eec France | |
| 1a36bef1-2f6c-457c-8b52-3610519247da Estonia | |
| 0ae6af7c-1fba-4d58-9079-0f3867dad4c4 Hungary | |
| 740b2de5-035f-4d3e-92c2-01b2c3cf3305 Hungary | |
| 3a25b735-2b29-4319-93c3-b61ee5a20eea Spain | |
| 99ade028-bb98-4a4c-a43b-a55bf50d49e4 Germany | |
| b050bcf6-e44b-45e3-ba0f-b8c6a8408eec France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZDVYETAB000A000000XX |
| EAN | 8015644771324 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 929 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 134 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1127 mm |
| Package Level 1 Gross Weight | 143 kg |
| Package Level 1 EAN | 8015644771324 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0289 |
| Technical | |
| Connecting Capacity | 6000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 2000 cycle |
| Ue = 500 ... 690 V 2000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 50 % |
| Number of Poles | 4P |
| Power Loss | 1550 W |
| Rated Current (In) | 6300 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 130 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 130 kA | |
| (525 V AC) 130 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 6300 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E6.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001060R0105 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
