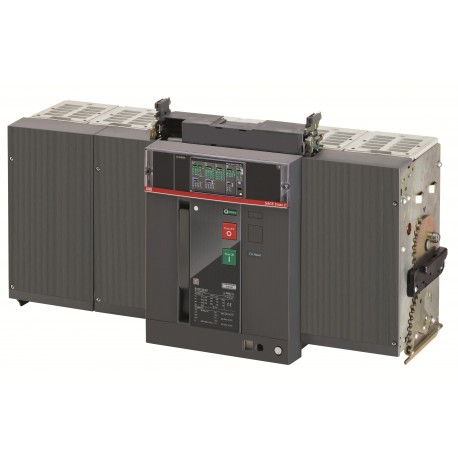

ABB 1SDA072652R1 1SDA072652R1 ABB E6.2V 6300 Ekip Dip LSI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA072652R1 ABB E6.2V 6300 Ekip Dip LSI 3p WMP

1SDA072652R1

072652

ABB

1 Pcs.

E6.2V 6300 Ekip Dip LSI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108468A1905
9AKK108468A1913
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 77 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP931546c2-3b42-4323-b382-e0544a9f59f7 Italy
Simplified SCIP5186576c-8638-44d2-adf8-fb73bde80423 Germany
f2167fd1-f232-424b-be13-622d147e6a53 Poland
24659704-6b5d-45e5-9da0-41ba06c334af Spain
7f2a0967-54f0-4a9e-a6e8-1e50ebc68072 Estonia
76c8001f-4fa2-4e88-aa4b-08b7f5ae10f6 Poland
8b244bdd-6412-4d09-bb80-93e22b8a2703 Sweden
8db35c84-4ebd-46ab-9306-87fa74c41eb5 Bulgaria
dd904cff-db9b-479b-bc86-cf736fed16a6 Greece
224efb4b-571a-46eb-bdbe-915e7c62596e Portugal
2d5acef3-4e47-4d6c-97d4-f66a67d5354b Belgium
59475684-3bd6-47bf-98b6-bae013a50544 Czech Republic
6d17b61b-1f4f-4253-a9a3-fe9f40e1482a Croatia
0f37bd2b-d5be-48e7-b841-87b93c85822e Germany
10cddacc-7e9a-4d72-ac83-5f1fb2626a22 Finland
5510a7bb-08e8-4078-b032-689deb3c2de2 Sweden
6d602718-b4dc-4020-88ed-8165349c1175 Belgium
cd7265dd-a59f-42c4-b553-53d28a10fffa Poland
15367434-a64b-4e2d-84d8-6a61355ed326 France
2333de77-89c4-45fd-ba88-65679b55465b Norway
016edd10-dd77-4016-8fbe-aac4b09941d8 Denmark
66f3eaaa-9da9-4225-9d56-857e39c9a12c Germany
85bb47c2-faba-4053-ab45-950c45e0b6bb Germany
7c53be7a-faf7-48cb-b185-392f4c9f04ce Hungary
9ae7e841-a04b-4ce3-85e4-1093fc95448c France
c542b2fc-e8e9-4084-b150-0b2e70e65e46 Hungary
df40d1df-183e-454c-8e66-deb43ac90a4e Germany
561321be-624e-400a-9db9-7b2ab56dca7d Netherlands
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ6VYETAB000A000000XX
EAN8015644765026
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width803 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight120 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight129 kg
Package Level 1 EAN8015644765026
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
CAD Dimensional Drawing1SDH001252R0237
Technical
Connecting Capacity6000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 2000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss1550 W
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 150 kA
(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(525 V AC) 130 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Dip LSI
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksYes, 690V
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5544
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001060R0105
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
