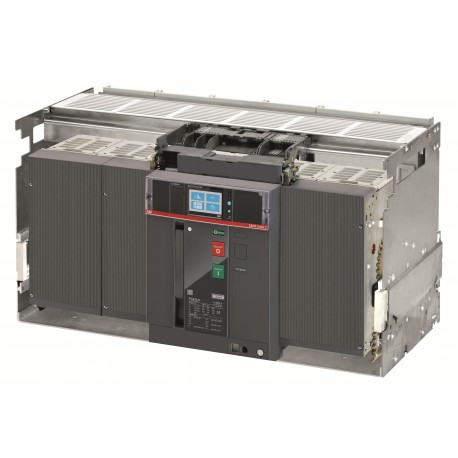

ABB 1SDA072594R1 1SDA072594R1 ABB E6.2V 4000 Ekip Touch LI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA072594R1 ABB E6.2V 4000 Ekip Touch LI 3p WMP

1SDA072594R1

072594

ABB

1 Pcs.

E6.2V 4000 Ekip Touch LI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108468A1905
9AKK108468A1913
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 77 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP730341eb-d3b2-410a-a677-ae267e7947db China
Simplified SCIPf71d3bdd-175b-4e86-aa1c-c7140ddcb1da Sweden
67ae3492-c623-4ca1-bed4-55261f2f992e France
143dd0c9-7870-4cf5-8e06-2aa87554bcb5 Bulgaria
281fa42e-5499-4dc0-b863-7cbd856d91c2 Estonia
0275fe05-d8eb-46ab-bfc9-81c2fda2d7c5 Poland
4730fc50-44cc-4793-8d80-7daccc8b8840 Germany
d517c9a9-4c4b-4e2b-8a06-6b1d2a97e795 Sweden
1cd472c9-a405-4691-93d6-2bd1ada63c55 Hungary
68a90733-9a8f-409d-973b-e4a76638aadb Germany
642da0b1-6064-499b-89f7-11b5d54e6d86 Greece
730419f6-411f-4370-921c-b481dd65b3c4 Croatia
8e645bef-e85e-428a-b0b4-d70af20698ae Denmark
51ddb749-6fcb-41fa-8a35-90481d3456e6 Hungary
1dcd6112-8243-4e1e-9587-1352012a3b77 Norway
7d24314e-c195-472c-b134-360123a310e7 Belgium
d8e50dce-2019-4a2f-99bb-725385a5be0d Poland
5b53aa8b-e368-4771-ad2b-32083c45fb31 Spain
e2d32064-99e5-4053-a3ab-adfe66255eef Portugal
0d32522f-90af-49bd-b2cd-26f59aa4714f Czech Republic
ad1ff294-7c5a-4fd8-9fe5-ed19338910bf Germany
8657cee5-04b7-4d22-84f4-8a5e55a00110 Netherlands
b31da407-ca6f-4bef-8f1e-8e8ff1a3c62f Poland
e38c5a02-9f8d-4bb2-b466-1ae9378656d8 Belgium
de7764b0-e275-4e43-9cfe-5b32a2244722 Germany
ea5d803c-2157-4e1b-85c6-75110fbec637 France
35c7aa81-450c-494f-8993-2b0654cf0e70 Germany
94d5dbdc-8355-4c64-a68a-d90a71986e5d Finland
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ6VWERAD000A000000XX
EAN8015644764449
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width803 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight120 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight129 kg
Package Level 1 EAN8015644764449
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
CAD Dimensional Drawing1SDH001252R0237
Technical
Connecting Capacity4000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 4000 cycle
Ue = 500 ... 690 V 4000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss544 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 150 kA
(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 130 kA
(525 V AC) 130 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Touch LI
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksYes, 690V
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5544
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001060R0105
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA072594R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 4000 A
Rated voltage (EF003977) 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) 150 kA
Overload release current setting (EF002336) 1600.0 A
Adjustment range undelayed short-circuit release (EF007131) 6000.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
