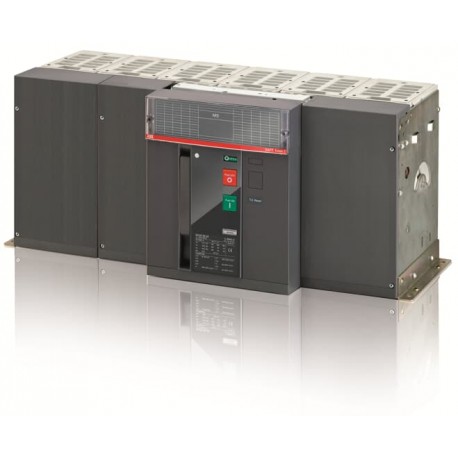

1SDA073428R1 ABB E6.2H/MS 6300 3p F HR
1SDA073428R1
073428
ABB
1 Pcs.
E6.2H/MS 6300 3p F HR
Connectors > Switch disconnector
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2364 |
| Environmental Product Declaration - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | c3bc95d7-cf74-4e45-9bf6-a7c7b8f01894 Italy |
| Simplified SCIP | 3b8f11da-e218-4056-a53d-5cff8ec17a65 Germany |
| 7bdb1974-acd9-4f62-b0c5-116e0d0d31a5 Denmark | |
| 6f5aabb6-8031-437d-baf3-d71d128d2dcf Germany | |
| 6a5752bc-a9fd-4ac1-bd70-7e8a0afd77e5 France | |
| 087f8b20-de40-4dcc-9028-02cb145a9f44 Sweden | |
| e435a2f0-4d0d-4143-8768-7ad787de35c2 Germany | |
| 6abf97ae-3fe2-47c1-8b06-344ed4e5bd3c Croatia | |
| 04342840-f430-4e12-8a4c-ce4caeee034e Germany | |
| ec7e11fd-a977-485f-9907-017ed528f327 France | |
| a9ad30b4-c580-40e9-b1e4-90d460034888 Germany | |
| c06da0a5-df4e-44e2-9025-7bc9bd9f53b7 Belgium | |
| bd9cfc64-7d32-4593-887e-c3e2b4db0de9 Spain | |
| 8cbcd67d-a07c-4a3d-8d68-afc941855bbc Hungary | |
| 3920b4bd-2ce5-48da-acaf-dfcc9855052d Estonia | |
| bb928269-fd80-42cc-a536-63aeacbd69cc Finland | |
| 669c79bc-3bc4-4951-a2ee-6d8d5a0f9674 Poland | |
| c646191b-c2b1-4a81-8f3b-8428bb6bebf1 Hungary | |
| 0e3d2c18-0acb-4423-8daa-b0173939e933 Greece | |
| ee917dbb-955f-429c-bca9-f2a27afa1db5 Belgium | |
| 30b4d48f-cc66-4ee3-85a9-677713149fee Poland | |
| b208a387-dcd2-4bd3-ac05-b9df89e9e50a Sweden | |
| 9600db3d-b5ba-46aa-98be-d49a060fd667 Norway | |
| 9fd5d72a-3192-462e-adcb-747150d32768 Bulgaria | |
| a3f9e9ec-a68c-4d19-b691-817535b9873b Netherlands | |
| d8e9c1cb-afa5-4e63-bd8e-33281a938b30 Poland | |
| 13f7d682-8bc0-4b3d-a5e4-7987123e75ef Czech Republic | |
| 0b89abd8-92ea-4637-b88b-e4cca184ffd4 Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z6HY00B00000000000XX |
| EAN | 8015644772789 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 762 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 109 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1000 mm |
| Package Level 1 Gross Weight | 118 kg |
| Package Level 1 EAN | 8015644772789 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0223 |
| Technical | |
| Connecting Capacity | 6000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 2000 cycle |
| Ue = 500 ... 690 V 2000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 767 W |
| Rated Current (In) | 6300 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Rated Uninterrupted Current (Iu) | 6300 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001060R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 6300 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 6300 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 6300 A |
| Rated short-time withstand current lcw (EF007050) | 100 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
