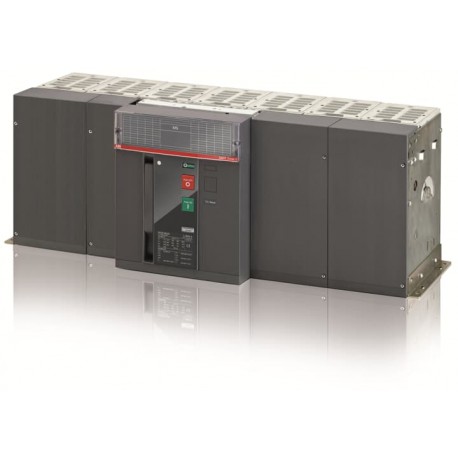

1SDA073465R1 ABB E6.2H/MS 5000 4p F HR
1SDA073465R1
073465
ABB
1 Pcs.
E6.2H/MS 5000 4p F HR
Connectors > Switch disconnector
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2364 |
| Environmental Product Declaration - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 7e1aff06-c9cd-4c49-aa41-04709014055b Italy |
| Simplified SCIP | 27eab018-1329-41a8-94b3-c21b5dcd9c82 Poland |
| 10bd1990-8aa9-4124-90b4-7039de1125f2 Germany | |
| 9ce3b0bb-a17c-4619-82ac-bd846366713a Germany | |
| 99d528ab-5c94-4c74-b479-9afebfcaeec5 Belgium | |
| 0a10feb3-35a0-4179-a63a-86bee2a0a520 Finland | |
| 3a1a4772-65e7-4768-a9c9-0d628bfc3efb Norway | |
| 6a75eeb9-8f4e-4a81-b5cd-9b3af7132ee1 Netherlands | |
| 9e565184-207a-445f-99f5-d39a63340f5e Hungary | |
| 87c006a8-f696-4d4f-abbd-66135ddcff9e Poland | |
| c220270a-1fd0-4f98-8257-5e5bf1889bc1 Estonia | |
| d48a1225-959c-4ec6-8893-e0a8d8433ee5 Croatia | |
| 319e77d6-a8fd-4762-bfc0-03cdbab28368 Sweden | |
| 1c8594c1-2557-4a64-81af-0f18b8dc81c2 Bulgaria | |
| 4cc40ead-7eee-4379-a988-b9a775245b09 Portugal | |
| 69a0baae-ef29-4fa9-9f18-a6ee3438201c Greece | |
| 0a131ed5-2ec3-4a9e-addc-3f4908ec0db4 Germany | |
| 9f84b935-1866-4253-9021-547b487dea64 Denmark | |
| 68b48818-6261-4d9d-ba34-6c8dd99a44b7 Czech Republic | |
| 9627dfae-77b6-4d6b-a2d7-9928af6b226b Poland | |
| a9a392bd-6b86-44cf-aed2-56abcd7fe918 Belgium | |
| 104bba7c-138e-4df3-b3ba-913b42eb3558 France | |
| bde61e2a-e7cc-4f24-b4c0-734342f1785e Spain | |
| 7e944c44-9b39-4e8f-9cde-b5ffba82d61c Hungary | |
| 13854131-2bce-41c2-99ae-684be82b5aac Germany | |
| dc1a480f-32e7-4363-9cc3-f15a3fe6a31d Sweden | |
| e4925930-5cef-4860-ae1f-1e7ebad3ece0 Germany | |
| fdd5aaf3-605b-4821-b3eb-d6723e591669 France | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZDHX00B00000000000XX |
| EAN | 8015644773151 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 888 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 125 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1127 mm |
| Package Level 1 Gross Weight | 134 kg |
| Package Level 1 EAN | 8015644773151 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0249 |
| Technical | |
| Connecting Capacity | 5000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 3000 cycle |
| Ue = 500 ... 690 V 2000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 50 % |
| Number of Poles | 4P |
| Power Loss | 483 W |
| Rated Current (In) | 5000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Rated Uninterrupted Current (Iu) | 5000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001060R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 5000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 5000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 5000 A |
| Rated short-time withstand current lcw (EF007050) | 100 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
