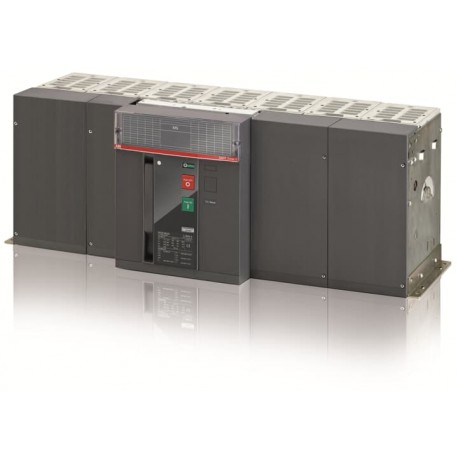

1SDA073463R1 ABB E6.2H/MS 4000 4p F HR
1SDA073463R1
073463
ABB
1 Pcs.
E6.2H/MS 4000 4p F HR
Connectors > Switch disconnector
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2364 |
| Environmental Product Declaration - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | dbe76942-37d3-4da2-96da-c20c9cf69322 Italy |
| Simplified SCIP | 451b4c50-488a-400e-9a50-0acae22a38f3 Poland |
| 32c4ed1d-79d4-4978-9e2a-9cb7d6d62724 Germany | |
| 083720f0-7885-4a6e-b022-171f89bdc5be Belgium | |
| f5a437d8-7000-4172-b3fd-5177ae23da78 Germany | |
| 65610e6d-cdf5-4ec8-8ac8-c5b2ed3c1be0 Norway | |
| 92d19af6-d1af-4d94-be86-87fb703455ea Finland | |
| f903cbae-f6b7-47bb-aabc-17ef2f102698 Poland | |
| 172e642b-2452-4ec9-a4a2-0c151f616ece Czech Republic | |
| ab3e818f-2ac3-4d16-b21e-402032b66695 Netherlands | |
| 5bac1712-762b-416a-af15-8adda966e8cf Germany | |
| ee01f723-1703-4166-bdfe-05ea0e831392 Denmark | |
| d4700f5c-e963-4f5b-bb37-c8deebd31e72 Croatia | |
| cbaa4b6a-9bc2-491e-9fae-dbcc4b8954b2 Estonia | |
| 60f79cf6-98e3-4b1f-b4bd-d6737e830e2b Hungary | |
| d95b6ea2-8718-488e-8cbf-cd940fbe1549 Greece | |
| 4d6df24e-5624-4bee-beae-516808704e69 Portugal | |
| be8cc30c-2ae1-41f8-a418-004f33342d44 Sweden | |
| 8f9f5dda-5190-482e-b8ca-60cf698be118 Bulgaria | |
| 10101011-f0af-4dba-84dd-c7b98519cd2b Poland | |
| 159cb8f1-0020-4c27-9acb-1de7736be0fa France | |
| 66e88db7-67a1-4a91-9381-eec57195fbc0 Belgium | |
| 36fe85ef-76fb-454f-bb21-d6a405c1214d Germany | |
| 86195893-6be2-4f89-815e-6ba50a3e9667 Sweden | |
| 28e2112a-be30-41a7-9dea-17706577554a Germany | |
| 6885e740-9324-4404-a33c-bb654141b8f3 France | |
| b14b7191-d86b-4285-8ad5-83d88cc6b21c Hungary | |
| 05635741-b76d-464e-8591-30f28bb9df54 Spain | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZDHW00B00000000000XX |
| EAN | 8015644773137 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 888 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 125 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1127 mm |
| Package Level 1 Gross Weight | 134 kg |
| Package Level 1 EAN | 8015644773137 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0249 |
| Technical | |
| Connecting Capacity | 4000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 4000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 50 % |
| Number of Poles | 4P |
| Power Loss | 309 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001060R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 4000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 4000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 4000 A |
| Rated short-time withstand current lcw (EF007050) | 100 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
