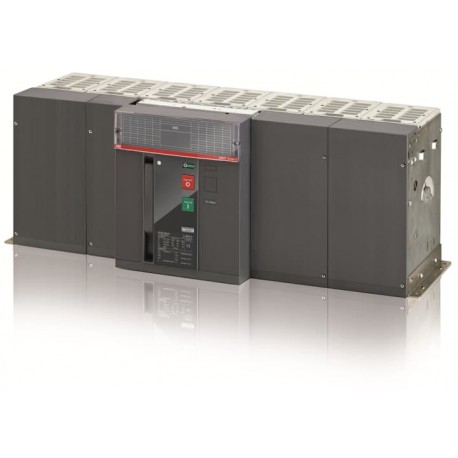

1SDA073469R1 ABB E6.2H/f/MS 4000 4p F HR
1SDA073469R1
073469
ABB
1 Pcs.
E6.2H/f/MS 4000 4p F HR
Connectors > Switch disconnector
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2364 |
| Environmental Product Declaration - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 13bfcc68-f6e5-4ee5-9ebd-81d9d033a2f2 Italy |
| Simplified SCIP | 515aa720-3099-45a9-a691-1e8c8ed1c19a Norway |
| fce0dce9-729a-4ab9-aca9-3ec6b42020c8 Finland | |
| 0a6c95b7-ddf9-440f-ae05-9c14cabb9c3b Bulgaria | |
| d2536277-a272-42b0-b135-e2c09d6f3857 Sweden | |
| e6f235d8-f2c7-4c1c-b564-3a2e0f84db89 Greece | |
| 9697bc3f-3c90-4035-a0eb-b0cacc70e698 Portugal | |
| 274c987e-a597-4a29-860f-cd3086503008 Hungary | |
| 0dce1e59-ac15-42a1-a1fc-bd3f0a5f4dea Croatia | |
| 7a98b14e-1b63-4832-bc66-1ed035beef95 Estonia | |
| fa67c521-406a-4314-a134-7081895397f3 Denmark | |
| 0d2a2a72-9547-479d-8888-60f97c3c36ab Germany | |
| df6ec249-0368-4a86-b5d0-e1dbdb4ad5cf Czech Republic | |
| 26131217-9f69-4472-a6d9-eec0d9a05d3a Poland | |
| 8d23affc-4366-47f7-9c7a-f1d86c1c331f Netherlands | |
| d1b74820-02fb-45d9-b38f-4d4eba93c034 France | |
| 07502346-f4fd-4cfe-be29-12c925d5b9f5 Poland | |
| 79ffea86-a5fd-4a3a-bc3b-38d3add0f56c Spain | |
| 5b8f2a2d-5158-4275-b84a-f03ded8babe5 Hungary | |
| c37b76c6-8652-4765-9b8c-3f721f2ed9d2 France | |
| 8ba61411-c835-40e5-b387-7ae5023624a5 Germany | |
| c065fa09-4d83-417c-8784-d0dae8262c97 Germany | |
| f38cc9c9-41e2-46a0-9b80-b54947a8150d Poland | |
| 7c1c73e1-946d-478c-ae15-c850a56fa49b Germany | |
| f6439603-1168-40f2-b416-32533e5a0794 Belgium | |
| 9078e3e2-a3b2-45b0-b691-086092c2812f Sweden | |
| e6ec41c2-9e4c-4ee6-af87-a3be86f6ab50 Germany | |
| ed0da294-d853-4ce8-9fc3-b70b9516c3f8 Belgium | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZEHW00B00000000000XX |
| EAN | 8015644773199 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 1014 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 140 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1257 mm |
| Package Level 1 Gross Weight | 151 kg |
| Package Level 1 EAN | 8015644773199 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0250 |
| Technical | |
| Connecting Capacity | 4000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 4000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4 / f |
| Power Loss | 309 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001060R0102 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 4000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 4000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 4000 A |
| Rated short-time withstand current lcw (EF007050) | 100 kA |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
