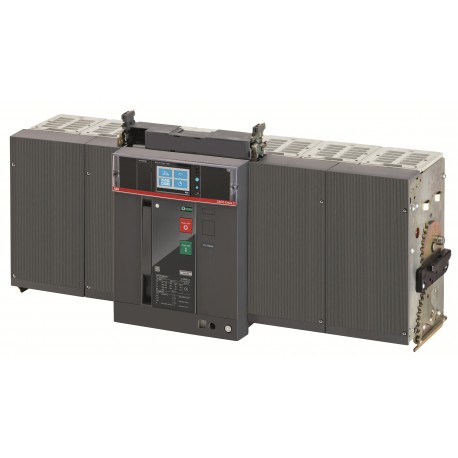

ABB 1SDA073367R1 1SDA073367R1 ABB E6.2H/f 6300 Ekip G Touch LSIG 4p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073367R1 ABB E6.2H/f 6300 Ekip G Touch LSIG 4p WMP

1SDA073367R1

073367

ABB

1 Pcs.

E6.2H/f 6300 Ekip G Touch LSIG 4p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108468A1905
9AKK108468A1913
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 77 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP4144d566-7e8c-469a-beb0-3bacd3963a3b Italy
Simplified SCIPa88c6ec3-6c0e-4b42-9dca-e3e21e1ad7cd Germany
ddb2eb04-2cf3-439d-a4e5-7807060a8034 Bulgaria
fa6e26dc-a04c-4d81-8f32-4a8f641106af Sweden
fb83662b-9597-49e5-b30e-caf9f6a1a9a0 Denmark
68b950b5-b624-4f88-babd-5a94c823f1c0 Poland
414a85b0-622b-43be-8922-1032857efbec Germany
f664bb2f-4a8a-4ccd-aef0-11d8e07271e8 Poland
cf61b4a3-4b20-4033-a044-57708a6aaa64 Estonia
07fd499d-01ca-4412-ad5f-48384b334d7d Greece
09897a27-10c1-4c95-a3a2-2378a980c558 Portugal
cc912eeb-d243-4d1f-8659-7a390ab6ff8e Hungary
dbff1e91-eb32-4f22-8f3a-fd655273dd89 Belgium
dffbd4bb-7825-4b74-9d04-d4a983631cc4 Spain
7d9afc60-c924-4b15-a36e-cdb6db46ab92 Netherlands
68e852e5-63f3-4150-aacf-13fb3fbf3c5d Norway
05d39013-3ca4-4392-91ba-c02780e612d2 Belgium
c6f67f8e-2ad0-4f33-9096-7d1ace1d0a5a Sweden
a39f2169-84d9-497d-9afc-ccd925a2a1c3 Croatia
639a82f8-bf6f-43b6-b8c6-7486dc020d4a Czech Republic
93cebbaf-4b7c-4005-a59e-11c3a48865ff Finland
ca38e192-b1d5-4c75-adef-413b3300957e France
e46fdf08-d8ac-4baa-9c99-d615ff58ea09 Germany
f7bc81ea-ee38-47ea-98b3-52b546c409e3 Germany
b3885979-6137-4723-a6d1-93ce64579986 Hungary
0496c03d-4c19-4ce7-9289-f95a2958e453 France
8509e77a-d65d-4576-8da0-c993d08708b0 Germany
fe17dbbd-144a-4bcd-81cb-a81086fa174c Poland
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZEHYETAN000A000000XX
EAN8015644772178
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width1069 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight148 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1257 mm
Package Level 1 Gross Weight159 kg
Package Level 1 EAN8015644772178
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Connecting Capacity6000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 2000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4 / f
Power Loss1550 W
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip G Touch LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksYes, 690V
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5544
EU Data Act Compliance Declaration1SDH002560A1001
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409
