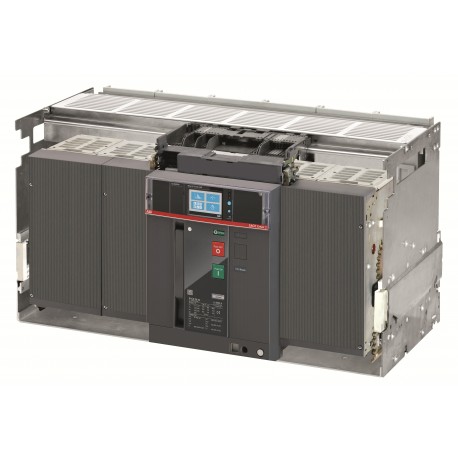

ABB 1SDA072648R1 1SDA072648R1 ABB E6.2H 6300 Ekip Hi-Touch LSI 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA072648R1 ABB E6.2H 6300 Ekip Hi-Touch LSI 3p WMP

1SDA072648R1

072648

ABB

1 Pcs.

E6.2H 6300 Ekip Hi-Touch LSI 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2364
Environmental Product Declaration - EPD9AKK108468A1905
9AKK108468A1913
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 77 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIPe8dbc5f1-8ca3-4922-9112-b297a54e9ce0 Italy
Simplified SCIP9e71d8ca-96bb-4cea-9bc4-99274f484cd6 Germany
d9e7f255-0021-47b5-b591-53dea3041263 Czech Republic
520804e9-a12c-4484-807e-73ad165950d8 Belgium
105451c6-ecba-4205-8c53-f4da8df93235 Germany
68db6467-6e69-4853-9077-3b67cb612827 Denmark
04f2e3ef-a19f-4688-856b-9d6b1c76bd33 Poland
19e34958-0b37-4be6-991a-3e8f112d6553 Sweden
e1e55b9e-5167-4c87-81f9-4de999c00709 Bulgaria
ffc7957a-327d-46d9-a1fe-f7f269b16e25 Germany
622790e4-13e8-4cb4-834e-0b06132a4231 Estonia
52c42561-ca66-4492-a994-515a07fcbe5c Greece
c6cf2058-0b46-47cd-b533-7751247f5941 Hungary
6cc1f90c-5482-4641-98a5-e306eeb021ba Portugal
3e54a5a1-d27d-49f3-a23d-d8c7cfda470b Belgium
2bb5c55c-f3ba-4062-b116-a51b46198deb Poland
640dff06-8c46-41d7-8d6a-6fdfb00dc64a Norway
5c371cb1-7670-4166-a488-27513ef7c791 France
5d1d3a8e-e620-4e0c-a1b4-fe13127bbb18 Finland
52eff9d4-bf5d-409a-80bd-65f287a9849f Netherlands
5bf9fb06-0094-471f-a0ba-8fc3e0f1e5f5 France
554a8d19-b44b-4fee-bc27-2a611006d983 Spain
919dd3c3-c300-4aa1-97b0-ae3ee1e2ad40 Hungary
c50a48f6-cc83-4dc9-a12f-af43e80c12f0 Germany
b0269cf3-79d9-48e1-8e16-9b70ba101eed Poland
f2a1cef1-3cc5-4201-bf52-ac340124481b Germany
3f12006e-8f83-4ca4-9080-92cd5b886b3a Sweden
d0eebfa7-f980-46d4-b7ab-26f377d183bf Croatia
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ6HYETAJ200A000000XX
EAN8015644764982
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width803 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight120 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1000 mm
Package Level 1 Gross Weight129 kg
Package Level 1 EAN8015644764982
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
CAD Dimensional Drawing1SDH001252R0237
Technical
Connecting Capacity6000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 2000 cycle
Ue = 500 ... 690 V 2000 cycle
10 cycles per hour
Mechanical Durability12000 cycle
60 cycles per hour
Number of Poles3P
Power Loss1550 W
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 100 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Hi-Touch LSI
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE6.2
Suitable for IT NetworksYes, 690V
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5544
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001060R0105
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
Instructions and Manuals (Part 2)1SDH001316R1002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

ETIM for 1SDA072648R1 Low-voltage industrial controls and switchgear (EC000228)
Feature Name Feature Value
Rated permanent current Iu (EF001389) 6300 A
Rated voltage (EF003977) 690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz (EF007048) 100 kA
Overload release current setting (EF002336) 2520.0 A
Adjustment range short-term delayed short-circuit release (EF007129) 3780.0 A
Adjustment range undelayed short-circuit release (EF007131) 9450.0 A
Integrated earth fault protection (EF007296) No
Type of electrical connection of main circuit (EF006819) Connection at separate chassis part
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for DIN rail (top hat rail) mounting (EF007250) No
DIN rail (top hat rail) mounting optional (EF008904) No
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 4
With switched-off indicator (EF007006) Yes
With integrated under voltage release (EF001390) No
Number of poles (EF001391) 3
Position of connection for main current circuit (EF006671) Connection at separate chassis part
Type of control element (EF006976) Push button
Complete device with protection unit (EF008906) Yes
Motor drive integrated (EF006697) No
Motor drive optional (EF007386) Yes
Degree of protection (IP) (EF005474) IP30
