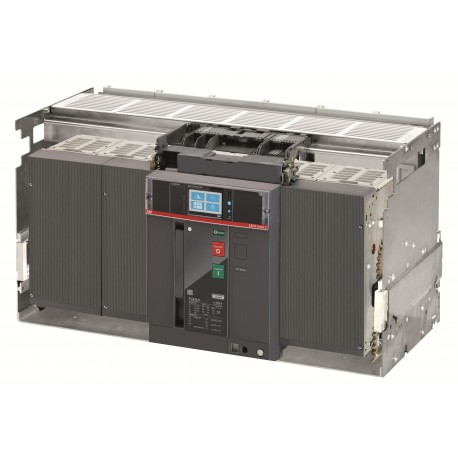

1SDA072617R1 ABB E6.2H 5000 Ekip G Touch LSIG 3p WMP
1SDA072617R1
072617
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for massive power transmission systems, the ABB 1SDA072617R1 air circuit breaker utilizes intelligent touch trip units to monitor and protect high-amperage lines. Withdrawable circuit breakers allow safe isolation and servicing without disrupting entire facility operations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2364
- Environmental Product Declaration - EPD: 9AKK108468A1905
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 77 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 92a7d6de-06df-4a8e-b49d-2b658b3031dd Italy
- Simplified SCIP: 5f18a006-87b2-4834-b691-4fc2a68e2772 Norway
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z6HXESAN200A000000XX
- EAN: 8015644764678
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2364 |
| Environmental Product Declaration - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 92a7d6de-06df-4a8e-b49d-2b658b3031dd Italy |
| Simplified SCIP | 5f18a006-87b2-4834-b691-4fc2a68e2772 Norway |
| 30114db0-cde0-4b6b-8a32-8a926cf989d2 Belgium | |
| b7a3249e-051c-472c-8b11-809c3ed2da59 Germany | |
| cdf8521e-e978-476a-841b-3cd524baba11 Sweden | |
| 55af8614-7d24-4779-a3cc-4104ebec9e5f Germany | |
| a8f83206-eabd-4d73-a47e-1c68d9e24dde Spain | |
| efba930d-a483-4256-bc95-45ba0ac28eb8 Hungary | |
| 698c5214-dc38-41b8-8500-abe9fa0049f8 France | |
| c793a653-5773-4eb1-959c-bb03244d1b4a Denmark | |
| 1630723b-5bb7-488b-8c8e-fe4cdc7ad7d0 Germany | |
| f36bf8d0-0e7a-41d4-b061-7211f67c7842 Poland | |
| bc452c3d-ac49-43c6-b279-4947be8b2bb5 Czech Republic | |
| 14504e7c-05df-436e-939b-4bb3534aeaf9 Netherlands | |
| a0996b31-084e-435d-a147-b825bc725769 Hungary | |
| 92fd64f7-6575-431b-8d00-6bbbe6386c2d Sweden | |
| cbc86b62-390e-49ae-8060-63596b8370cc Bulgaria | |
| a7a7ec1b-a869-4bdd-90f3-1195b1d409b4 Portugal | |
| cb758fce-dc38-4f92-a6a8-e334f8b57577 Greece | |
| c16a91e5-9ac0-46e8-a7b0-f79884ca58ed Estonia | |
| 78145bed-570d-4fde-8a1f-5a984d9f7a12 Croatia | |
| 31c93e18-c7f7-4aee-9718-327f984163dd France | |
| b7e976c8-2915-4521-8315-85e1c51a7fb4 Poland | |
| bc3f75c1-607a-4093-852f-84d2cbb788f0 Poland | |
| 38be251d-3142-4805-a7d6-de5b5a7435f4 Germany | |
| bd948c28-ae14-4f4e-8d94-d98ad382bb88 Germany | |
| 01ecb07d-2149-4211-8ed2-f167aa3849e2 Belgium | |
| 854ec0a1-230c-41f1-9e6c-1c2e2687c1ab Finland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z6HXESAN200A000000XX |
| EAN | 8015644764678 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 803 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 120 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1000 mm |
| Package Level 1 Gross Weight | 129 kg |
| Package Level 1 EAN | 8015644764678 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Connecting Capacity | 5000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 3000 cycle |
| Ue = 500 ... 690 V 2000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 850 W |
| Rated Current (In) | 5000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 5000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip G Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
