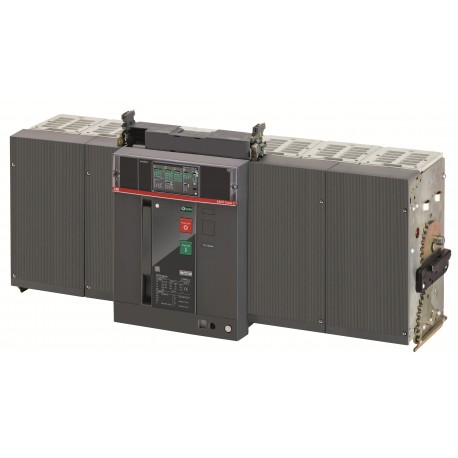

1SDA073212R1 ABB E6.2H 4000 Ekip Dip LSI 4p WMP
1SDA073212R1
073212
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manage extreme electrical loads safely with the 1SDA073212R1 ABB E6.2H 4000 Ekip Dip LSI 4p WMP air circuit breaker. Premium power circuit breakers are crucial for high-amperage industrial distribution systems, offering dependable fault interruption and system coordination. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2364
- Environmental Product Declaration - EPD: 9AKK108468A1905
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 77 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: f079f1b7-51d0-45ae-b316-bb159696c629 Italy
- Simplified SCIP: 6ead086f-5b4b-4e6c-bf2a-94dd1edc40a5 Denmark
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZDHWERAB000A000000XX
- EAN: 8015644770624
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2364 |
| Environmental Product Declaration - EPD | 9AKK108468A1905 |
| 9AKK108468A1913 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 77 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | f079f1b7-51d0-45ae-b316-bb159696c629 Italy |
| Simplified SCIP | 6ead086f-5b4b-4e6c-bf2a-94dd1edc40a5 Denmark |
| 08d55cb2-5172-4b57-b2f8-3b5ba652ff5e Poland | |
| 6ead086f-5b4b-4e6c-bf2a-94dd1edc40a5 Denmark | |
| b6a4c55d-71dc-4b36-826b-6e495f0e789d Greece | |
| 4949139c-460e-43e2-9b64-daac69699ba5 Croatia | |
| 0566b71e-9f30-4ac8-a9e3-78e5c520842b Norway | |
| a601b07a-c7fb-4e39-b1ac-3fc31cf33f7e Finland | |
| ef9bfaca-ec05-4afd-9e6d-3514cf40b8de Portugal | |
| e87e25ae-2c0b-4e34-ab16-5c6be9b55c62 France | |
| 2e170159-c970-41e9-aa78-4d26c08e1ab8 Germany | |
| 760cf527-11c7-4a20-86d6-b8bd6a9366c9 Germany | |
| b3d91429-b323-423d-8935-1df018687e50 Sweden | |
| 4949139c-460e-43e2-9b64-daac69699ba5 Croatia | |
| 7c6a6e61-3ac9-4f65-9ab6-86cf71027776 Netherlands | |
| ef1c4b9e-8ffb-4350-924e-545bd0b2123b Hungary | |
| 5e2a73b4-28e3-4445-b578-dc264a06181f Germany | |
| c348bed4-45a5-4cc2-9404-a8d02f7aa85b Germany | |
| 08d55cb2-5172-4b57-b2f8-3b5ba652ff5e Poland | |
| b6a4c55d-71dc-4b36-826b-6e495f0e789d Greece | |
| ef9bfaca-ec05-4afd-9e6d-3514cf40b8de Portugal | |
| d3472d99-3e15-48e2-8ffd-1d9764c4883e Poland | |
| 5e2a73b4-28e3-4445-b578-dc264a06181f Germany | |
| 760cf527-11c7-4a20-86d6-b8bd6a9366c9 Germany | |
| 39d2a743-073c-4ef5-94bc-eca84d477999 France | |
| 6ac520e6-8c50-491e-938d-544ac488f63e Hungary | |
| d14b794b-47fe-4695-beb5-d5f9614f1314 Spain | |
| 6ac520e6-8c50-491e-938d-544ac488f63e Hungary | |
| ef1c4b9e-8ffb-4350-924e-545bd0b2123b Hungary | |
| 90d3d8b7-1386-4486-b026-aa724422a950 Estonia | |
| d3472d99-3e15-48e2-8ffd-1d9764c4883e Poland | |
| 39d2a743-073c-4ef5-94bc-eca84d477999 France | |
| 0dd1f9aa-fa78-41ec-bb9c-c3c6f536e828 Czech Republic | |
| 7c6a6e61-3ac9-4f65-9ab6-86cf71027776 Netherlands | |
| 63845839-1436-4aa4-93df-56843d742afc Bulgaria | |
| e87e25ae-2c0b-4e34-ab16-5c6be9b55c62 France | |
| 26fe40f7-a000-4677-bd71-00977578b544 Sweden | |
| 1109c350-70e6-43b4-9e29-15928353dc27 Poland | |
| b3d91429-b323-423d-8935-1df018687e50 Sweden | |
| d14b794b-47fe-4695-beb5-d5f9614f1314 Spain | |
| 18f01d17-3577-4320-8c17-b2b7dbdafc54 Belgium | |
| 90d3d8b7-1386-4486-b026-aa724422a950 Estonia | |
| a601b07a-c7fb-4e39-b1ac-3fc31cf33f7e Finland | |
| 2e170159-c970-41e9-aa78-4d26c08e1ab8 Germany | |
| 6a396719-ddf6-49ad-8a08-7af86539e03d Belgium | |
| 0dd1f9aa-fa78-41ec-bb9c-c3c6f536e828 Czech Republic | |
| 1109c350-70e6-43b4-9e29-15928353dc27 Poland | |
| c348bed4-45a5-4cc2-9404-a8d02f7aa85b Germany | |
| b9ceb0b9-b581-4e49-b213-5d68b7f6778f Germany | |
| 26fe40f7-a000-4677-bd71-00977578b544 Sweden | |
| 18f01d17-3577-4320-8c17-b2b7dbdafc54 Belgium | |
| 6a396719-ddf6-49ad-8a08-7af86539e03d Belgium | |
| b9ceb0b9-b581-4e49-b213-5d68b7f6778f Germany | |
| 0566b71e-9f30-4ac8-a9e3-78e5c520842b Norway | |
| 63845839-1436-4aa4-93df-56843d742afc Bulgaria | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZDHWERAB000A000000XX |
| EAN | 8015644770624 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 929 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 134 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1127 mm |
| Package Level 1 Gross Weight | 143 kg |
| Package Level 1 EAN | 8015644770624 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0289 |
| Technical | |
| Connecting Capacity | 4000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 4000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 12000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 50 % |
| Number of Poles | 4P |
| Power Loss | 544 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 100 kA |
| (230 V AC) 100 kA | |
| (380 V AC) 100 kA | |
| (400 V AC) 100 kA | |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 100 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 100 kA |
| (415 V AC) 100 kA | |
| (440 V AC) 100 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSI |
| Release Type | EL |
| Short-Circuit Performance Level | H |
| Standards | IEC |
| Sub-type | E6.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001060R0105 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
