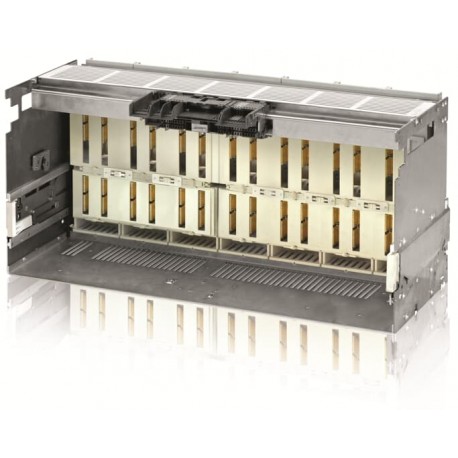

1SDA073921R1 ABB E6.2 W FP Iu 6300 or X version 4p HR HR
1SDA073921R1
073921
ABB
1 Pcs.
Automation > Chassis part power circuit breaker
E6.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA073921R1 ABB E6.2 W FP Iu 6300 or X version 4p HR HR is a specialized circuit breaker fixed part utilized within heavy electrical distribution infrastructure to safely house withdrawable switching devices. Such components provide a secure mechanical and electrical interface, allowing operators to rack circuit breakers in and out for maintenance without disrupting main busbar power. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZDC6XA0XX
- EAN: 8015644778545
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85389099
- Product Net Width: 929 mm
- Product Net Height: 425 mm
- Product Net Depth / Length: 383 mm
- Product Net Weight: 100 kg
- Package Level 1 Units: box 1 piece
- Package Level 1 Width: 570 mm
More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZDC6XA0XX |
| EAN | 8015644778545 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
| Dimensions | |
| Product Net Width | 929 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 100 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 570 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 1127 mm |
| Package Level 1 Gross Weight | 109 kg |
| Package Level 1 EAN | 8015644778545 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Fixed Part |
| Product Type | Fixed Part |
| Version | W FP |
| Technical | |
| Connecting Capacity | 6000 mm² |
| Current Type | AC |
| Neutral Pole Current ([%Iu]) | 50 % |
| Number of Poles | 4P |
| Rated Current (In) | 6300 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| 800 V AC | |
| 900 V AC | |
| Rated Uninterrupted Current (Iu) | 6300 A |
| Rated Voltage (Ur) | 900 V |
| Recommended Screw Driver | M12 |
| Standards | IEC |
| Sub-type | E6.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5544 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Instructions and Manuals | 1SDH001000R0820 |
| External Classifications and Standards | |
| ETIM 9 | EC002043 - Chassis part power circuit breaker |
| ETIM 10 | EC002043 - Chassis part power circuit breaker |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| Object Classification Code | Q |
| UNSPSC | 39121616 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370422 |
