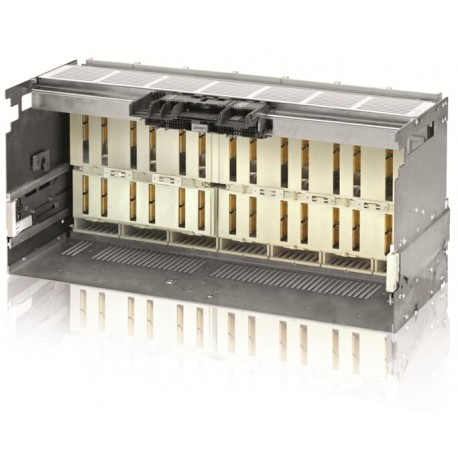

ABB 1SDA073922R1 1SDA073922R1 ABB E6.2 W FP Iu 6300 or X version 4p/f HRHR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073922R1 ABB E6.2 W FP Iu 6300 or X version 4p/f HRHR

1SDA073922R1

073922

ABB

1 Pcs.

E6.2 W FP Iu=6300 or X version 4p/f HRHR FIXED BASE W TER. HR-HR 4P Iu6300 -E6.2/f

Automation > Chassis part power circuit breaker
E6.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Abb 1SDA073922R1 is a fixed part for circuit breakers, utilized in large electrical switchboards to provide a stable termination and docking station for withdrawable breaker frames. Such infrastructure components ensure secure mechanical alignment and reliable electrical connection paths within industrial power distribution networks.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: ZEC6XA0XX
  • EAN: 8015644778552
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 1069 mm
  • Product Net Height: 425 mm
  • Product Net Depth / Length: 383 mm
  • Product Net Weight: 112 kg
  • Package Level 1 Units: box 1 piece
  • Package Level 1 Width: 570 mm

More info

▲
ABB EcoSolutions
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZEC6XA0XX
EAN8015644778552
Minimum Order Quantity1 piece
Customs Tariff Number85389099
Dimensions
Product Net Width1069 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight112 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width570 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length1257 mm
Package Level 1 Gross Weight123 kg
Package Level 1 EAN8015644778552
Additional Information
Product Main TypeSACE Emax 2
Product NameFixed Part
Product TypeFixed Part
VersionW FP
Technical
Connecting Capacity6000 mm²
Current TypeAC
Neutral Pole Current ([%Iu])100 %
Number of Poles4 / f
Rated Current (In)6300 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Uninterrupted Current (Iu)6300 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
StandardsIEC
Sub-typeE6.2
Certificates and Declarations
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5544
Instructions and Manuals1SDH001000R0820
External Classifications and Standards
ETIM 9EC002043 - Chassis part power circuit breaker
ETIM 10EC002043 - Chassis part power circuit breaker
IDEA Granular Category Code (IGCC)5219 >> Switch part or accessory
Object Classification CodeQ
UNSPSC39121616
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370422
