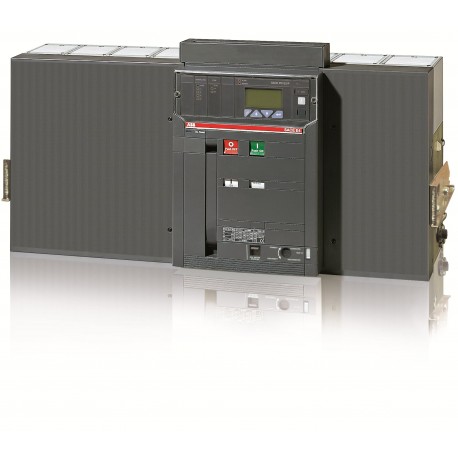

ABB 1SDA056812R1 1SDA056812R1 ABB E4S 4000 PR122/P-LSI In 4000A 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056812R1 ABB E4S 4000 PR122/P-LSI In 4000A 4p W MP

1SDA056812R1

056812

ABB

1 Pcs.

E4S 4000 PR122/P-LSI In=4000A 4p W MP E4S4000 PR122/P LSI 4P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
E4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIPc83beb1c-b493-4f58-b9a2-32d3294ced3f Italy
Simplified SCIPdd511c3a-3471-4b30-8b42-68c885dc3113 Belgium
95af380b-07d3-4a04-b14d-d8b23a5e6d8d Spain
ff20688b-7efa-45fd-abbf-e8688adb3b28 Germany
cae3a1d2-35c3-439a-a27e-7b710488bfef Sweden
cf4512d0-17c9-4227-b32b-76e83927c99f Germany
74d80318-04c6-47da-a4b0-164db46ede96 France
14a193ab-f949-4ae9-95d9-a3adc861c0cf Hungary
c6ae76d3-56f4-4884-ab6f-675d93f819a3 Croatia
558121f9-a569-4499-9b57-e383f1d48c5f Poland
65645a10-2554-4b4d-b52d-bc6e4851d2ac Netherlands
6d404c7e-6dc8-4536-bb08-d6b09f6ea59d Germany
011880b4-16e1-4717-9cb3-d0a3ca01e0c9 Czech Republic
8881d000-1678-488b-b951-5eb194f950cc Portugal
1c2b0033-4858-4268-8894-921d9bfc8fd1 Estonia
851a1838-e0cc-4963-8fc4-31511a4f4493 Greece
05f4b370-af4c-4b6e-a8b0-b43d8a191515 Poland
4d383eaa-4ff7-456a-ba00-3fd4c4cc47c8 Sweden
1f2ee1c3-c160-4bf0-8711-d3635dd87956 Bulgaria
7d1d631c-d841-495a-9b22-48e4f71961dc Hungary
71935fe1-0e4d-4187-b6d6-b03e3d3af6f6 France
94243ed7-db95-4cc8-97aa-bd0510769aca Norway
1966afb5-c305-4642-aa2e-5fdbcde576d5 Finland
65fb7743-116d-40d3-a224-c15e9d06496e Belgium
5be8430d-47ee-4d19-af1f-221be8802243 Germany
2394fc1d-5eb6-4821-a52c-ef055bfdc8e9 Poland
2325ffcf-8aa8-433d-933e-ac871e8078a1 Denmark
fb8fe14a-909f-4da7-89cd-e7307cc22e32 Germany
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644581527
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width684 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight96 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length920 mm
Package Level 1 Gross Weight116 kg
Package Level 1 EAN8015644581527
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles4P
Power Loss660 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
ReleasePR122/P-LSI
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000460R0002
1SDH000460R0102
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
