ABB 1SDA056810R1 1SDA056810R1 E4S 4000 PR121/P-LSIG In 4000A 4p W MP ABB SACE EMAX MOVING PART FOR CIRCUIT BREAKER E4S 4000A .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

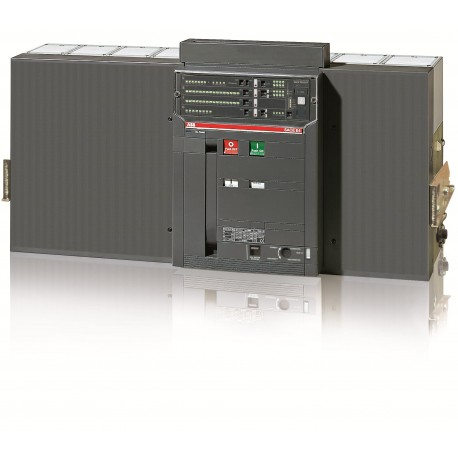

1SDA056810R1 E4S 4000 PR121/P-LSIG In 4000A 4p W MP ABB SACE EMAX MOVING PART FOR CIRCUIT BREAKER E4S 4000A ..

1SDA056810R1

056810

E4S 4000 PR121/P-LSIG In=4000A 4p W MP

ABB

1 Pcs.

SACE EMAX MOVING PART FOR CIRCUIT BREAKER E4S 4000A FOUR-POLE OVERCURRENT RELEASE PR121/P-LSIG R4000 FITTED WITH: 4 AUXILIARY CONTACT AND CIRCUIT BREAKER IN POSITION OPEN-CLOSED E4S4000 PR121/P LSIG 4P W MP E4S 4000 PR121/P-LSIG In=4000A 4p W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
Service Breakers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP1df9f9a8-8589-4659-8629-dd7f8eabf996 Italy
Simplified SCIP2fb496f8-cc55-4e07-86bb-4c18c7781693 Spain
14b97545-82b6-4a80-8bb0-bf45c4f2dd9b Hungary
744ff50a-c791-49bc-9baa-d3cbbd283ace France
4b927a5e-9f18-4e4a-8cc9-086bb2fe78bc Sweden
b5ddfd59-712f-4c64-9617-74581604162d Germany
1e089667-adb8-4c32-a941-7324573bdc4b Germany
1f9cbdf8-ea7c-4824-941d-fa4e74a5b39c France
f2f86bee-b11e-4775-b67e-544e75cac0ed Belgium
12bd0460-31cd-4407-a446-d63dbdca5b8e Poland
cec974e0-3df0-4e14-bd1b-19c1989b68ed Germany
3e407d5b-1a96-46f8-943b-6dec51284db7 Belgium
14a2b632-dabd-4ab7-8625-f6ae59ef8b94 Germany
4b6f67b5-ca98-4cbe-afce-3be15fa1d2a0 Norway
0e48e8b2-5257-4735-b220-68965612502d Finland
6b961895-6804-4d78-87f9-510c996e5f94 Poland
870a654b-0223-47d5-9977-73c35becd6aa Czech Republic
141e83d0-ce1b-4e8b-b217-b3ec8725ea8d Netherlands
f68c50f1-3041-453e-baf1-eb6138656f3a Denmark
1f9a17e4-73a3-495d-b966-3265f1501100 Germany
605c5c13-0ea6-48e1-9f7e-0db11c01d511 Greece
dab57db2-0e58-4770-9091-96f6463c5317 Portugal
c03fa93a-14b5-4ef6-9861-9761d933d8e0 Sweden
e8d11e78-da33-44f7-b08d-b9eaaf70cfab Bulgaria
0ce49fce-84d4-4b66-8c4e-2c2f44ace034 Hungary
ae75f09d-27c5-4e27-bdc4-202b7ac39c06 Estonia
725b3e0d-586b-4d01-a7a0-590c135ee00d Croatia
7e08e439-8f58-439a-8118-5162ab06c16c Poland
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644581503
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width684 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight96 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length920 mm
Package Level 1 Gross Weight116 kg
Package Level 1 EAN8015644581503
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles4P
Power Loss660 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
