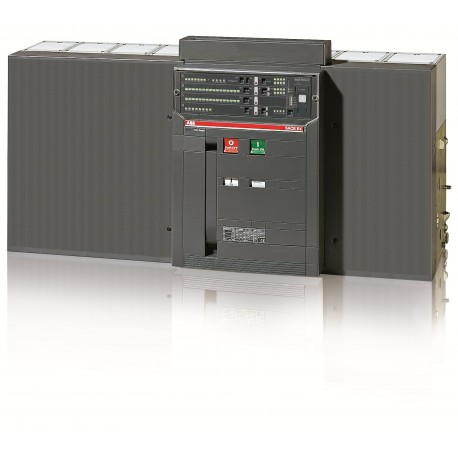

ABB 1SDA056794R1 1SDA056794R1 ABB E4S 4000 PR121/P-LSIG In 4000A 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056794R1 ABB E4S 4000 PR121/P-LSIG In 4000A 4p F HR

1SDA056794R1

056794

ABB

1 Pcs.

E4S 4000 PR121/P-LSIG In=4000A 4p F HR E4S4000 PR121/P LSIG 4P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP2d5925ac-212f-4be9-9bcf-007e830f4c4e Italy
Simplified SCIP590b4613-a0e9-4956-986d-0a0aa325a824 Hungary
80405f52-4107-479c-9191-66215e1dfedd France
b2d87f44-b3f0-46f7-a3d0-dc45987e76cd Spain
8832b83a-4e1f-433e-826c-926811218db1 Germany
a7931988-129b-43d6-a2ff-aa4a44c78aae Poland
ed5a48e8-9696-4c33-97b2-8450466d757d Finland
7509e593-9739-42d2-83c1-d0451446c057 Norway
e491b9eb-5c46-4b52-a42c-139f7abb57da Belgium
c7cbe54c-661e-4e6c-901b-93973117203b Germany
612eb6bc-dc28-4dcd-bb14-54c4305f7ad5 Croatia
11ae6c64-006a-4d2a-9257-deb75b97a856 Estonia
8dd3e9ca-541b-4184-a998-13ee9da5b311 Netherlands
8b9251e2-1fa7-49de-89a5-c74dd660426b Poland
36d74531-2ee3-43f6-8b79-2111f3aad5db Hungary
0e0a2fbf-82f0-43af-be08-323185f2460b Greece
f036f856-8fb4-4a6e-9f90-96580a0fe153 Portugal
80199a2d-f022-4af0-a710-4420895d521c Bulgaria
4816e604-8b4d-42af-af3d-e3faa4d6713f Sweden
617fdaf1-228a-4c4c-a0cc-f482dc9b8eb4 Germany
a3747406-4bdb-4262-960d-d9c161b5785b Denmark
7b116711-aa16-4619-8c49-5e9272c09b9b Czech Republic
f5275a66-0dea-43ff-be29-7017bde7e345 Poland
d89305a2-b4c1-4b87-8625-b5969c1b72a5 Belgium
6062727f-72a7-48eb-b102-32c6efb02b4d Sweden
72029de1-579e-42ff-a5f1-5d55091e127e Germany
cc1955b4-f597-4520-996b-01c55d778905 Germany
692a09a0-3ec4-4598-a55d-adf3234fd001 France
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644581343
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width656 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight92 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length920 mm
Package Level 1 Gross Weight111 kg
Package Level 1 EAN8015644581343
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles4P
Power Loss360 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 75 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 75 kA
(230 V AC) 75 kA
(380 V AC) 75 kA
(400 V AC) 75 kA
(415 V AC) 75 kA
(440 V AC) 75 kA
(500 V AC) 75 kA
(660 V AC) 75 kA
(690 V AC) 75 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelS
StandardsIEC
Sub-typeE4
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
