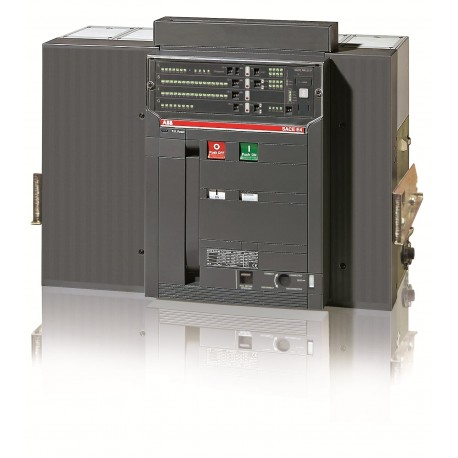

1SDA056802R1 ABB E4S 4000 PR121/P-LSIG In 4000A 3p W MP
1SDA056802R1
056802
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB part number 1SDA056802R1 operates as an air circuit breaker designed for high-capacity electrical distribution architectures, providing dependable protection and switching capabilities for heavy industrial power networks. Such heavy-duty circuit protection units manage massive fault currents to safeguard vital electrical assets.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 9fdf1d54-4396-4da5-9b30-d7a9f1531cbc Italy
- Simplified SCIP: 09b26375-0127-4826-b059-7f868e4c8f07 Belgium
- Environmental Information: 9AKK10103A6076
- EAN: 8015644581428
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 594 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 85 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 9fdf1d54-4396-4da5-9b30-d7a9f1531cbc Italy |
| Simplified SCIP | 09b26375-0127-4826-b059-7f868e4c8f07 Belgium |
| 10f7961c-279c-410a-9f4c-b2d09819b675 Spain | |
| c4a45003-debf-4a97-adc4-552ff85834b0 Hungary | |
| e13b6611-7f70-47e8-9d4b-34a603281710 France | |
| 10be4f54-445c-4b92-90e9-92891e83aed3 Germany | |
| 7b943fd5-bae8-4854-8603-76f20473d455 Sweden | |
| 437b3d54-606b-4654-9f26-25c60502340c France | |
| 8fc03fe7-e4e4-4c85-973b-9f2ed3fdeab1 Germany | |
| 27130db8-e6d5-4ea2-aaed-ad01bee135c6 Belgium | |
| ad8781fb-bbc6-4e5f-a92f-2e4c1e7ce373 Germany | |
| e8710b62-87ce-485d-b283-0c053c638a16 Finland | |
| bce198f2-4578-4529-b55b-991b4b9c24fd Norway | |
| 764ee7c4-c72c-4979-9ad2-313ecacaad9e Germany | |
| 2e8a5880-3755-4104-8a22-ad4891cfda80 Poland | |
| 15922f7b-c276-4ce1-b7cb-48e9d343d0ae Hungary | |
| b4a0283d-d57f-4849-baee-0c1e459489ad Croatia | |
| a9c2abd0-0f53-4811-9df9-9ad7544ba466 Estonia | |
| 73e62146-6cb5-498b-a640-be0aaff87e93 Bulgaria | |
| 9005b7b1-00a5-4962-abde-c94c73682b33 Sweden | |
| b8a28117-d265-4f3b-b0a1-b3ca3cd52acf Greece | |
| e28c31df-ef4c-43d9-9b19-1ae31ed01321 Portugal | |
| bbda9b72-1a39-4e7e-8a80-e5bff6c01a37 Netherlands | |
| aa72bbdf-257a-4dd5-a02e-9bd05702616a Poland | |
| dc0fe931-aeda-4c70-a0a3-4342ce43561e Czech Republic | |
| 5813b745-6d9e-4990-81f5-dbf1973b45a3 Germany | |
| 76a075e6-2ee0-4ae1-9bf7-ac7f967ee7e5 Denmark | |
| 1b2e2f59-4282-45ed-a509-0df366f0f7df Poland | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644581428 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 594 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 85 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 100 kg |
| Package Level 1 EAN | 8015644581428 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 660 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 4000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 75 kA |
| (230 V AC) 75 kA | |
| (380 V AC) 75 kA | |
| (400 V AC) 75 kA | |
| (415 V AC) 75 kA | |
| (440 V AC) 75 kA | |
| (500 V AC) 75 kA | |
| (660 V AC) 75 kA | |
| (690 V AC) 75 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 75 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 75 kA |
| (230 V AC) 75 kA | |
| (380 V AC) 75 kA | |
| (400 V AC) 75 kA | |
| (415 V AC) 75 kA | |
| (440 V AC) 75 kA | |
| (500 V AC) 75 kA | |
| (660 V AC) 75 kA | |
| (690 V AC) 75 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0016 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
