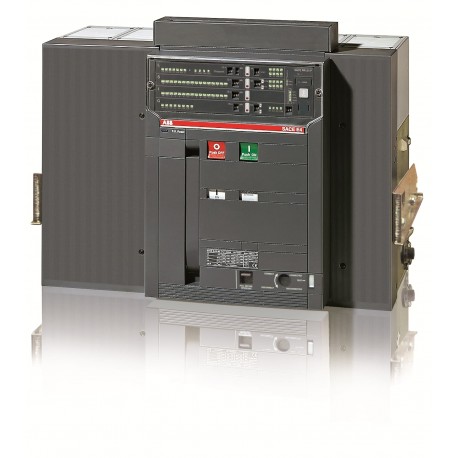

1SDA056801R1 ABB E4S 4000 PR121/P-LSI In 4000A 3p W MP
1SDA056801R1
056801
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A withdrawable air circuit breaker, specifically the 1SDA056801R1 ABB E4S 4000 PR121/P-LSI In 4000A 3p W MP manufactured by ABB, provides essential overcurrent protection and manual or automatic disconnection for heavy industrial power networks. Such components are commonly integrated into main switchgear panels to manage large electrical loads and protect infrastructure from catastrophic fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): Document availability on demand
- SCIP: 152c0b73-27a5-4d64-9e42-f6a6a4634299 Italy
- Simplified SCIP: f96b989d-a49a-4f81-a4f0-7055123c1a48 Germany
- Environmental Information: 9AKK10103A6076
- EAN: 8015644581411
- Minimum Order Quantity: 1 piece
- Customs Tariff Number: 85362090
- Product Net Width: 594 mm
- Product Net Height: 461 mm
- Product Net Depth / Length: 396.5 mm
- Product Net Weight: 85 kg
- Package Level 1 Units: 1 piece
- Package Level 1 Width: 515 mm
More info
▲| Material Compliance | |
|---|---|
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| SCIP | 152c0b73-27a5-4d64-9e42-f6a6a4634299 Italy |
| Simplified SCIP | f96b989d-a49a-4f81-a4f0-7055123c1a48 Germany |
| 39a219aa-a82b-4492-b534-7d139e6e3f7f Germany | |
| eefe6558-9011-4f6c-bf8a-870d9418a9e5 Sweden | |
| fd06df3e-a17f-45d8-a8c9-96ada956d17b Hungary | |
| 236e3759-6bf6-4146-a6e4-20d19aad4d67 France | |
| e45a2dc1-efdb-4314-a0c4-9a119aed0ece Spain | |
| 73dc2fb4-aadc-4764-a291-d7b40b4ffdbc Belgium | |
| f1719ad5-24aa-4b9d-b4de-b8a8f9c61700 Germany | |
| b393fbfd-0ecf-4317-a099-d8a748e78c15 Denmark | |
| 3315814e-31e8-4058-b0a1-27c5f483fbc3 Netherlands | |
| cc33b228-37a4-4ddb-9e70-00e41e1395dc Poland | |
| 91273483-95f4-4ba6-9e4f-0044433ee48f Czech Republic | |
| 7b814410-90d1-4989-81af-ea2a8d0292af Hungary | |
| aa69d925-e7ad-4a6b-9022-2646db518af0 Croatia | |
| 74a3d99c-61a7-47bf-aefd-87a7a6d7641c Estonia | |
| aa1bbc14-e463-49ff-a1ec-6c90b46c9341 Greece | |
| 0d799065-2bf8-45a3-9284-ec3141f999c2 Portugal | |
| 331316c6-8f87-48c5-b394-58f0800d55b4 Sweden | |
| 6fbcc90f-cbc3-424c-94db-b49c27779157 Bulgaria | |
| c1bfe21f-d86e-4c41-8bd8-a50ae91bdc0b Poland | |
| ba056024-42e8-4816-b2f8-9e19fd76758d France | |
| ae999684-8551-464b-bf8c-bff2faea48e8 Poland | |
| dd5916d7-9e67-4253-9691-e1b814d1fc07 Germany | |
| 1f8793a0-a36b-479a-b904-ebd566d9dc64 Germany | |
| 7566d964-f804-4c13-9e97-b1f5974ccc41 Belgium | |
| 97f4961b-f2cc-4166-9424-bff67d51d5a6 Finland | |
| f17b38e1-eeba-47bd-86de-2bbfacef7172 Norway | |
| Environmental | |
| Environmental Information | 9AKK10103A6076 |
| Ordering | |
| EAN | 8015644581411 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 594 mm |
| Product Net Height | 461 mm |
| Product Net Depth / Length | 396.5 mm |
| Product Net Weight | 85 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 600 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 100 kg |
| Package Level 1 EAN | 8015644581411 |
| Additional Information | |
| Product Main Type | SACE Emax |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 10 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 660 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current (Ie) | 4000 A |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 75 kA |
| (230 V AC) 75 kA | |
| (380 V AC) 75 kA | |
| (400 V AC) 75 kA | |
| (415 V AC) 75 kA | |
| (440 V AC) 75 kA | |
| (500 V AC) 75 kA | |
| (660 V AC) 75 kA | |
| (690 V AC) 75 kA | |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 75 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 75 kA |
| (230 V AC) 75 kA | |
| (380 V AC) 75 kA | |
| (400 V AC) 75 kA | |
| (415 V AC) 75 kA | |
| (440 V AC) 75 kA | |
| (500 V AC) 75 kA | |
| (660 V AC) 75 kA | |
| (690 V AC) 75 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Release | PR121/P-LSI |
| Release Type | EL |
| Short-Circuit Performance Level | S |
| Standards | IEC |
| Sub-type | E4 |
| Terminal Connection Type | Withdrawable Circuit-Breakers |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200006D0209 |
| Declaration of Conformity - CE | 1SDL000165R0016 |
| Instructions and Manuals | 1SDH000460R0002 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
