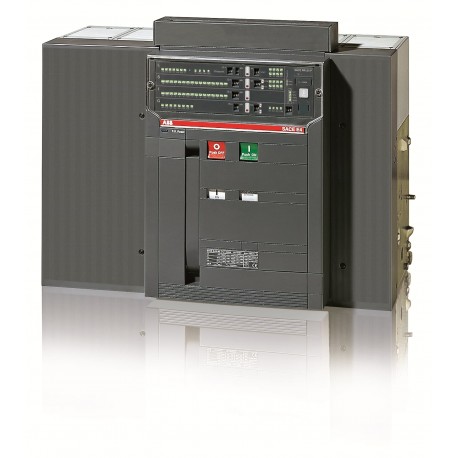

ABB 1SDA056850R1 1SDA056850R1 ABB E4H 4000 PR121/P-LSIG In 4000A 3p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056850R1 ABB E4H 4000 PR121/P-LSIG In 4000A 3p F HR

1SDA056850R1

056850

ABB

1 Pcs.

E4H 4000 PR121/P-LSIG In=4000A 3p F HR E4H4000 PR121/P LSIG 3P F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
SCIP5aba3114-c04f-4355-9c5a-3a2b21393bcf Italy
Simplified SCIP5973fd86-da30-42a2-bcea-f457914a2f22 Norway
8eef5cf7-4272-4e9a-bbe8-1d25f03b8261 Finland
bf30df56-a171-4b68-a617-d981ab067cce Belgium
31402ddc-1096-4a39-b53e-897214096742 Germany
4ead8d00-1328-474d-84fc-c720aa0f4c16 Denmark
24831278-3d65-4484-975a-094dd7549b9e Poland
f5dfb81e-572c-4c16-b373-63fe1b149ca8 Germany
845d113f-a429-4fbe-8ed5-afde62690144 Hungary
0ab8a578-bc8c-4ee6-bbc3-054abf66c136 Estonia
c4f7952a-e4d6-467d-8b5c-1885ec899964 Poland
aee3a33a-b645-42aa-8de1-c39a14c5bb6d Bulgaria
71377c74-1013-4b89-a20d-10fdab13193c Sweden
a434e111-2601-4c70-a42a-7bf0421c1111 Portugal
f5efc67b-75ab-4e72-b4b3-802648fc7ff1 Greece
3c14708d-5034-42be-92d2-4f5cbc30c73f Croatia
ea8e57b4-0485-457d-951d-0e0b5a818ac6 Germany
0b896d45-6809-4d71-a737-68b60d44e657 Czech Republic
9606eb5a-833c-47e7-b0d9-2cca97c2f2c2 Poland
18a86be4-3cc6-4448-a948-680f4c534840 Netherlands
ac120286-c0f8-4062-96fe-2264f016d017 France
142ac935-5594-4abf-a909-f9b7d10f1540 Belgium
2383ea9d-f9ec-46a6-9884-d15d0db3691b Germany
3b7b3c10-7cc9-4b91-b0b8-24a491d14c87 Sweden
deec522a-a7cc-4086-8557-eb57ca6c7071 Germany
1651733a-5e8d-4344-b62a-eb543a263dc0 Hungary
8ad6bf1f-ac71-4974-999b-8cfcb2887ca1 Spain
e75b576d-114e-43ad-9d53-0554aab08ce7 France
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644581909
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width566 mm
Product Net Height418 mm
Product Net Depth / Length302 mm
Product Net Weight81 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight95 kg
Package Level 1 EAN8015644581909
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Loss360 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSIG
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4
Terminal Connection TypeFixed Circuit-Breakers
Rear flat Horizontal
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
