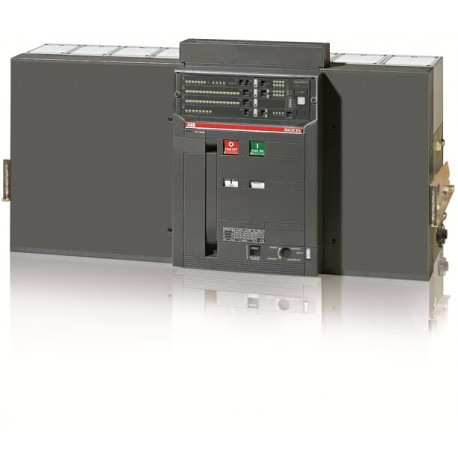

ABB 1SDA056873R1 1SDA056873R1 ABB E4H 4000 PR121/P-LSI In 4000A 4p W MP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA056873R1 ABB E4H 4000 PR121/P-LSI In 4000A 4p W MP

1SDA056873R1

056873

ABB

1 Pcs.

E4H 4000 PR121/P-LSI In=4000A 4p W MP E4H4000 PR121/P LSI 4P W MP

Automation > Power circuit-breaker for trafo/generator/installation protection
E4

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)Document availability on demand
Environmental
Environmental Information9AKK10103A6076
Ordering
EAN8015644582135
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width684 mm
Product Net Height461 mm
Product Net Depth / Length396.5 mm
Product Net Weight96 kg
Container Information
Package Level 1 Units1 piece
Package Level 1 Width515 mm
Package Level 1 Height600 mm
Package Level 1 Depth / Length920 mm
Package Level 1 Gross Weight116 kg
Package Level 1 EAN8015644582135
Additional Information
Product Main TypeSACE Emax
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionW
Technical
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
10 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles4P
Power Loss660 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)1000 V
Rated Operational Current (Ie)4000 A
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(220 V AC) 100 kA
(230 V AC) 100 kA
(380 V AC) 100 kA
(400 V AC) 100 kA
(415 V AC) 100 kA
(440 V AC) 100 kA
(500 V AC) 100 kA
(660 V AC) 85 kA
(690 V AC) 85 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
ReleasePR121/P-LSI
Release TypeEL
Short-Circuit Performance LevelH
StandardsIEC
Sub-typeE4
Terminal Connection TypeWithdrawable Circuit-Breakers
Certificates and Declarations
Data Sheet, Technical Information1SDC200006D0209
Declaration of Conformity - CE1SDL000165R0016
Instructions and Manuals1SDH000460R0002
External Classifications and Standards
Object Classification CodeQ
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
