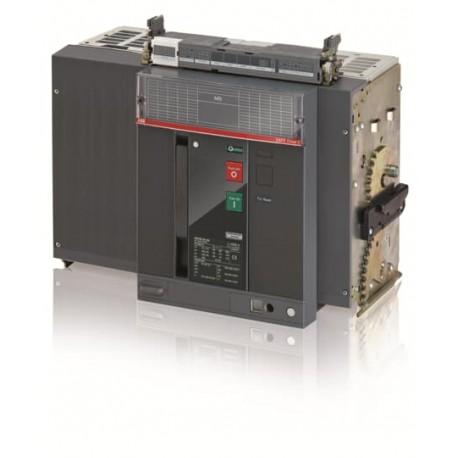

ABB 1SDA073546R1 1SDA073546R1 ABB E4.2V/MS 4000 4p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073546R1 ABB E4.2V/MS 4000 4p WMP

1SDA073546R1

073546

ABB

1 Pcs.

E4.2V/MS 4000 4p WMP

Connectors > Switch disconnector
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.3 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZCVW00A00000000000XX
EAN8015644773960
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width551 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight74 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight81 kg
Package Level 1 EAN8015644773960
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionW
CAD Dimensional Drawing1SDH001252R0434
Technical
Connecting Capacity4000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4P
Power Loss900 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 75 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE4.2
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5545
UL CertificateNo certification needed
VDE CertificateNo certification needed
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
Object Classification CodeQ
UNSPSC39122233
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

ETIM for 1SDA073546R1 Low-voltage industrial controls and switchgear (EC000216)
Feature Name Feature Value
Version as main switch (EF006981) Yes
Version as maintenance-/service switch (EF006986) No
Version as safety switch (EF006985) No
Version as emergency stop installation (EF006959) No
Version as reversing switch (EF009408) No
Number of switches (EF005586) 0
Max. rated operation voltage Ue AC (EF007355) 690 V
Rated operating voltage (EF001435) 690 V
Rated permanent current Iu (EF001389) 4000 A
Rated permanent current at AC-23, 400 V (EF011777) 4000 A
Rated permanent current at AC-21, 400 V (EF009165) 4000 A
Rated short-time withstand current lcw (EF007050) 100 kA
Number of poles (EF001391) 4
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as change-over contact (EF003531) 0
Motor drive optional (EF007386) Yes
Motor drive integrated (EF006697) No
Voltage release optional (EF007491) Yes
Device construction (EF008240) Built-in device slide-in technique (withdrawable)
Suitable for front mounting 4-hole (EF007247) No
Suitable for front mounting centre (EF007248) No
Suitable for distribution board installation (EF007262) Yes
Suitable for intermediate mounting (EF007264) No
Colour control element (EF007167) Other
Type of control element (EF006976) Push button
Interlockable (EF006281) Yes
Type of electrical connection of main circuit (EF006819) Bolt connection
Degree of protection (IP), front side (EF003118) IP30
Degree of protection (NEMA) (EF011959) Other
