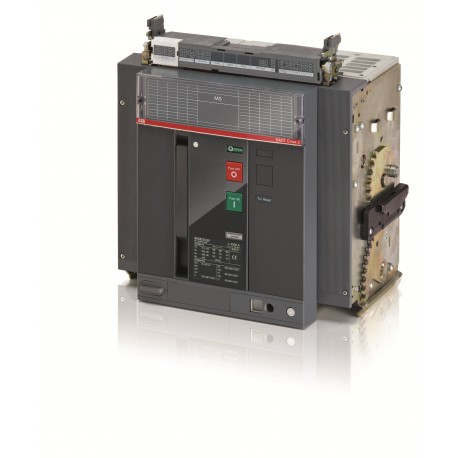

1SDA073507R1 ABB E4.2V/MS 4000 3p WMP

1SDA073507R1

073507

ABB

1 Pcs.

E4.2V/MS 4000 3p WMP

Connectors > Switch disconnector
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 1SDA073507R1 ABB E4.2V/MS 4000 3p WMP is a withdrawable air circuit breaker switch disconnector engineered to manage high-amperage electrical loads in primary distribution switchgear. Large facilities use withdrawable breakers to facilitate safe rack-out procedures during routine maintenance and system inspections.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • ABB EcoSolutions: Yes
  • ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
  • End Of Life Disassembling Instructions: 9AKK108468A2363
  • Environmental Product Declaration - EPD: 9AKK108468A1904
  • Extended Product Lifetime: Lifetime Extension Services are Offered
  • Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
  • REACH Declaration: 9AKK108466A1425
  • RoHS Declaration: 9AKK108466A1424
  • RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
  • Toxic Substances Control Act - TSCA: 9AKK108467A8326
  • Environmental Information: 9AKK108467A6707
  • Order Code US and Canada: Z4VW00A00000000000XX
  • EAN: 8015644773571
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85362090

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.3 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZ4VW00A00000000000XX
EAN8015644773571
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width425 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight60 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight67 kg
Package Level 1 EAN8015644773571
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionW
CAD Dimensional Drawing1SDH001252R0433
Technical
Connecting Capacity4000 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 5000 cycle
Ue = 500 ... 690 V 4000 cycle
20 cycles per hour
Mechanical Durability15000 cycle
60 cycles per hour
Number of Poles3P
Power Loss900 W
Rated Current (In)4000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 75 kA
Rated Uninterrupted Current (Iu)4000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE4.2
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5545
UL CertificateNo certification needed
VDE CertificateNo certification needed
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
Object Classification CodeQ
UNSPSC39122233
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
