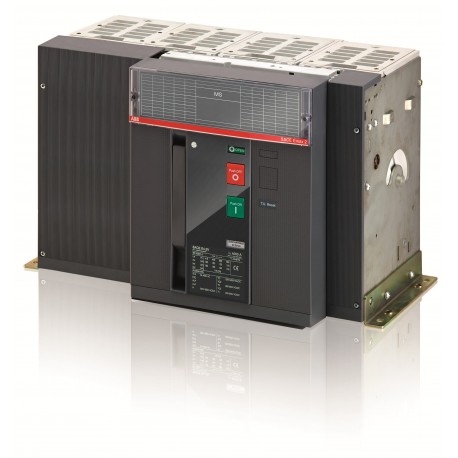

ABB 1SDA073455R1 1SDA073455R1 ABB E4.2V/MS 2000 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA073455R1 ABB E4.2V/MS 2000 4p F HR

1SDA073455R1

073455

ABB

1 Pcs.

E4.2V/MS 2000 4p F HR

Connectors > Switch disconnector
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.3 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZCVT00B00000000000XX
EAN8015644773052
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight70 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight77 kg
Package Level 1 EAN8015644773052
Additional Information
Product Main TypeSACE Emax 2
Product NameSwitch Disconnector
Product TypeSwitch Disconnector
VersionF
CAD Dimensional Drawing1SDH001252R0197
Technical
Connecting Capacity1600 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 10000 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4P
Power Loss425 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 75 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE4.2
Terminal Connection TypeRear flat Horizontal
Terminal TypeBolt
Tightening Torque70 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5545
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001001R0100
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
IDEA Granular Category Code (IGCC)5293 >> Switch disconnector
Object Classification CodeQ
UNSPSC39122233
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27371403

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
