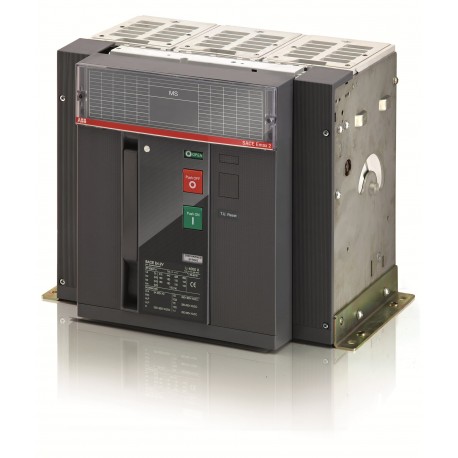

1SDA073416R1 ABB E4.2V/MS 2000 3p F HR
1SDA073416R1
073416
ABB
1 Pcs.
E4.2V/MS 2000 3p F HR
Connectors > Switch disconnector
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | fdac4f19-7a47-464a-bb63-8e763e570453 Italy |
| Simplified SCIP | 3e0b68e3-165f-42a9-99bd-0c747a4f18ee Germany |
| bfc3680e-09b3-40fc-a377-06ff24c35957 Germany | |
| cdfe4c14-18a8-4ce0-8cfb-db38572da4b0 Croatia | |
| e0266e2f-4718-4147-a353-9dc7a5d2307b Germany | |
| c8c528df-6f15-4fb3-88b2-9109c1c766d4 Sweden | |
| b0cc09c3-897e-4d1b-b1f8-648ea0aaac68 France | |
| eddbec89-fe62-4f1e-a499-a0f73cea52af Denmark | |
| 1e426c69-4fba-42e9-8f62-2d7e3b8ebd03 Spain | |
| 459c0204-4b70-4147-963d-7184dbae282d Belgium | |
| 0f3e2075-5beb-486e-a3fa-e7f7ed32d58d Hungary | |
| 677dbf51-d1ee-4223-adc6-41ae87fec119 France | |
| 24d649bf-3a0c-48a3-9b47-3e43cba74127 Poland | |
| c729951c-476a-4df3-85ad-e67ad4c73f6c Czech Republic | |
| 542bf143-df07-44b3-869c-253121789dd5 Germany | |
| 2453bb2a-fd7f-4608-81a2-f59e12fb9094 Portugal | |
| f6b18982-139e-4bbe-9c11-d790898a8679 Poland | |
| 6f43e2bc-5333-4e7e-bc47-e483c001ebd3 Bulgaria | |
| d171ec85-afe1-4a03-8b1c-5e3736ca0fdb Netherlands | |
| 956b47f8-d4d2-420b-8768-1771f400a664 Norway | |
| c49337f5-5276-499a-9ba0-98067f695a2d Poland | |
| 9a931107-c4bb-4e07-b4cc-f39664009798 Hungary | |
| e0cfe1d9-8401-4c86-9912-41885e6aac87 Sweden | |
| 3cd14be7-6d77-4381-848b-724db0bbac8c Finland | |
| 04922315-5214-4ae1-8bee-904f083072f5 Estonia | |
| c42c29be-044a-4b30-8c30-8421257bc919 Belgium | |
| b542827b-468e-43f0-be20-61c90cd7aae4 Germany | |
| b9388695-9465-4702-9717-edff83f8b310 Greece | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VT00B00000000000XX |
| EAN | 8015644772666 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644772666 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Switch Disconnector |
| Product Type | Switch Disconnector |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Connecting Capacity | 1600 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 10000 cycle |
| Ue = 500 ... 690 V 10000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 2000 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Uninterrupted Current (Iu) | 2000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| IDEA Granular Category Code (IGCC) | 5293 >> Switch disconnector |
| Object Classification Code | Q |
| UNSPSC | 39122233 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27371403 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 2000 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 2000 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 2000 A |
| Rated short-time withstand current lcw (EF007050) | 100 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | Yes |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Push button |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP30 |
| Degree of protection (NEMA) (EF011959) | Other |
