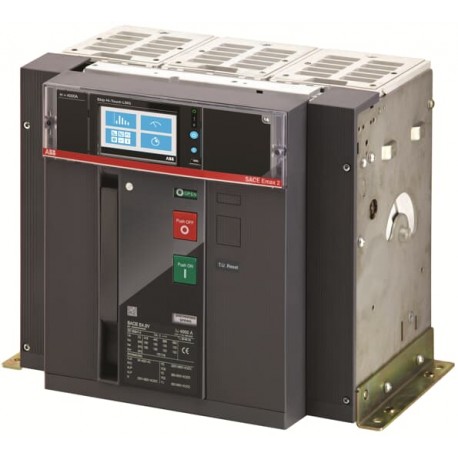

1SDA071224R1 ABB E4.2V 4000 Ekip Touch LI 3p F HR
1SDA071224R1
071224
ABB
1 Pcs.
E4.2V 4000 Ekip Touch LI 3p F HR
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB power circuit breaker, listed as 1SDA071224R1 ABB E4.2V 4000 Ekip Touch LI 3p F HR, is engineered to manage large electrical loads and protect core industrial distribution infrastructure from fault conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 104d4b83-8055-4340-a90b-594733d22d27 Italy
- Simplified SCIP: 5bbce6f9-a277-4a48-98f0-8af6e65a877c Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VWERBD000A000000XX
- EAN: 8015644750749
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 104d4b83-8055-4340-a90b-594733d22d27 Italy |
| Simplified SCIP | 5bbce6f9-a277-4a48-98f0-8af6e65a877c Germany |
| c907ad59-1137-42ae-b1ef-a9b864817ebc Sweden | |
| 9bba3fe5-9a14-4324-82f8-864493564e99 Poland | |
| e7bc7b91-6dc6-4f7e-80d6-2fb2673d3ece Greece | |
| 3b9ec31e-414c-47ac-b736-49e6e663890b Estonia | |
| b0bda8b4-7865-468e-9bab-462dd5b3aa26 Hungary | |
| a47cb2bf-5f11-4c76-8661-e59b487d48b5 Netherlands | |
| 67fc5b32-4347-4f66-bec7-9cfe6178fcf3 Poland | |
| a2388151-03b4-432c-8943-789062cda78c Spain | |
| 5630d34f-c285-4aa8-9035-5b63548eacb0 Belgium | |
| 1698aea2-9331-4415-8658-6643e18093e7 Germany | |
| e3c7f928-7a30-4135-ab60-88e533ce6438 Finland | |
| 43197ecf-1861-446c-8377-69c01925d7d3 France | |
| a186452b-2307-4dd9-8d75-72b4aa041055 Poland | |
| f7ad0f33-e718-4f18-bdf0-ee51c1e9ada5 Norway | |
| 8b40bc07-f613-4fd2-a588-4a0cf06a2e86 Czech Republic | |
| 1c16b4a8-64ea-4723-9239-94855d517430 Belgium | |
| cdd21245-50cd-4785-a91f-81a8c7b11dbc Croatia | |
| 6b1cb39a-a14d-4d6d-af10-09d80c3c014e Sweden | |
| 50ce231f-6142-4f4c-b116-8f8dd76d6eaf Germany | |
| 17e807fb-c94d-46ab-b9ee-2662f39c385c Germany | |
| 638cadbe-32fb-4d8b-8dc0-8ff55e404400 Hungary | |
| cf33c91b-adc7-4fab-8a1a-7dc8ab66fd87 Germany | |
| be4eaf20-bda9-4688-b8f4-d0a081f7e086 France | |
| 4c53c372-e33a-4a83-aa80-6dfe2539c263 Portugal | |
| 86dae21e-2dbb-4f09-857f-19e66ed51c00 Denmark | |
| 2ad7075a-98e0-406f-83a0-c3b2cd254034 Bulgaria | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VWERBD000A000000XX |
| EAN | 8015644750749 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644750749 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 465 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M12 |
| Release | Ekip Touch LI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
