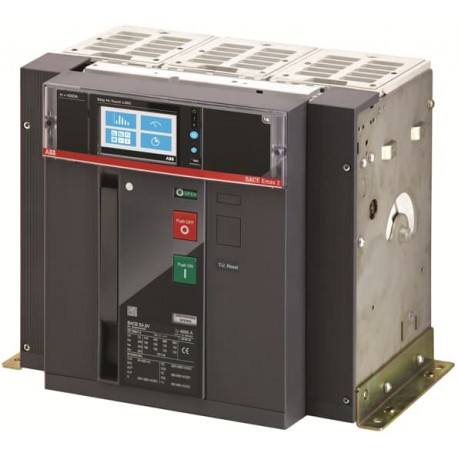

1SDA071229R1 ABB E4.2V 4000 Ekip Hi-Touch LSIG 3p F HR
1SDA071229R1
071229
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Abb E4.2V 4000 Ekip Hi-Touch LSIG 3p F HR circuit breaker functions as a primary protective device in complex industrial power architectures. These units provide advanced trip management and rapid interruption capabilities to protect vital electrical infrastructure from severe fault conditions.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: b192bb07-b5f3-4f11-af38-7141ee85eec4 Italy
- Simplified SCIP: 1f147c33-3f28-436f-bc08-2b375b66cf98 Sweden
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VWERBK200A000000XX
- EAN: 8015644750794
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | b192bb07-b5f3-4f11-af38-7141ee85eec4 Italy |
| Simplified SCIP | 1f147c33-3f28-436f-bc08-2b375b66cf98 Sweden |
| 05a8455e-8079-41d1-a46a-1e6757bc9f61 Estonia | |
| 0ae63d78-8bcb-42de-8a5d-136d4987e63c Belgium | |
| d7ff7229-7658-4f8c-90a7-ac511daeef38 Spain | |
| 6df12662-9d4b-40bc-a3b5-b5099c640c1f Sweden | |
| 64049ae5-6e8a-4f48-bd3b-9e84370df94c France | |
| 437001c7-9d27-44fe-95e1-5b4b7ab28238 Poland | |
| 02bb39ff-a634-4fba-8e42-e09ae1227f96 Hungary | |
| 42b8c629-e3db-4cdc-ac3b-0d72abe74997 Bulgaria | |
| 212f5ba8-48e7-4f0d-a088-b26ac9e8099d Czech Republic | |
| 5bf6128b-ee75-4f0f-9d62-a6fc9848bfd5 Netherlands | |
| 05a8455e-8079-41d1-a46a-1e6757bc9f61 Estonia | |
| 1fa3cc9b-426c-4999-93c8-6548d2c2bf7b Hungary | |
| bc17557f-c183-459d-9479-ec8458edbc4b Poland | |
| d7ff7229-7658-4f8c-90a7-ac511daeef38 Spain | |
| 8373101f-158e-4e30-8871-c94b03386cc5 France | |
| 1fa3cc9b-426c-4999-93c8-6548d2c2bf7b Hungary | |
| e5e303ee-1a58-46da-a437-551fe5fa400b Germany | |
| 614d191c-3cd3-474b-b472-970a0cac04ae Germany | |
| c4a404e1-5acb-4810-bc98-e63abda79243 Norway | |
| c41201fd-53c0-485c-a152-67cba3c7c78d Germany | |
| e9523c38-6d2e-4877-a993-2cf9a48b3d64 Belgium | |
| 0ae63d78-8bcb-42de-8a5d-136d4987e63c Belgium | |
| fa40c56b-358c-4fae-89a9-0a9f68cee3bc Denmark | |
| 42b8c629-e3db-4cdc-ac3b-0d72abe74997 Bulgaria | |
| e9523c38-6d2e-4877-a993-2cf9a48b3d64 Belgium | |
| bdf51999-a35a-4e9b-82dd-c3517344d6c4 Germany | |
| 5367f5c0-817d-430b-82da-9e87efa0c2e5 Finland | |
| c41201fd-53c0-485c-a152-67cba3c7c78d Germany | |
| 1f147c33-3f28-436f-bc08-2b375b66cf98 Sweden | |
| 080a1a99-d781-4849-890a-bbdf7957422a Germany | |
| 437001c7-9d27-44fe-95e1-5b4b7ab28238 Poland | |
| 8373101f-158e-4e30-8871-c94b03386cc5 France | |
| 212f5ba8-48e7-4f0d-a088-b26ac9e8099d Czech Republic | |
| e5e303ee-1a58-46da-a437-551fe5fa400b Germany | |
| 4932bb80-514a-48dd-9feb-892210f3e20f Croatia | |
| 6df12662-9d4b-40bc-a3b5-b5099c640c1f Sweden | |
| 5bf6128b-ee75-4f0f-9d62-a6fc9848bfd5 Netherlands | |
| 02bb39ff-a634-4fba-8e42-e09ae1227f96 Hungary | |
| 5408363a-85bd-457c-a04d-4b4004ba32d5 Portugal | |
| 614d191c-3cd3-474b-b472-970a0cac04ae Germany | |
| 77044ac6-a346-4e09-b96f-58b9a8aedecd Poland | |
| fa40c56b-358c-4fae-89a9-0a9f68cee3bc Denmark | |
| c4a404e1-5acb-4810-bc98-e63abda79243 Norway | |
| 4932bb80-514a-48dd-9feb-892210f3e20f Croatia | |
| 5367f5c0-817d-430b-82da-9e87efa0c2e5 Finland | |
| 64ad2c35-aa15-4890-b28c-c92fac96adec Greece | |
| bdf51999-a35a-4e9b-82dd-c3517344d6c4 Germany | |
| 64049ae5-6e8a-4f48-bd3b-9e84370df94c France | |
| 5408363a-85bd-457c-a04d-4b4004ba32d5 Portugal | |
| 64ad2c35-aa15-4890-b28c-c92fac96adec Greece | |
| 77044ac6-a346-4e09-b96f-58b9a8aedecd Poland | |
| 080a1a99-d781-4849-890a-bbdf7957422a Germany | |
| bc17557f-c183-459d-9479-ec8458edbc4b Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VWERBK200A000000XX |
| EAN | 8015644750794 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644750794 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 465 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M12 |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
