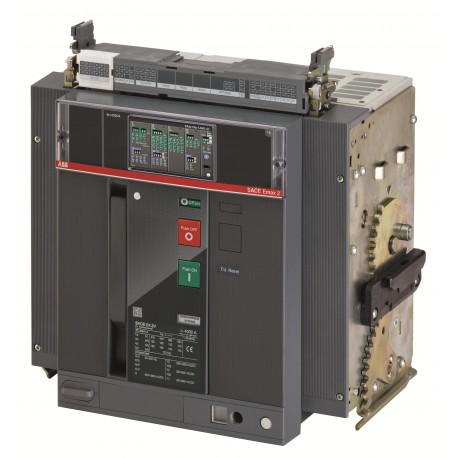

1SDA072573R1 ABB E4.2V 4000 Ekip Dip LSIG 3p WMP
1SDA072573R1
072573
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
ABB 1SDA072573R1 E4.2V air circuit-breaker offers high interrupting capacity for critical electrical infrastructure and heavy industrial power grids. Such drawout units are engineered to protect main power feeds and allow safe maintenance procedures within large switchgear setups.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 6553b0cf-923a-4f38-89ef-18e104b096d1 Italy
- Simplified SCIP: 2add9077-767c-4815-9d7d-d43845160da4 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VWERAC000A000000XX
- EAN: 8015644764234
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 6553b0cf-923a-4f38-89ef-18e104b096d1 Italy |
| Simplified SCIP | 2add9077-767c-4815-9d7d-d43845160da4 Germany |
| 9afbd3c8-79d1-45c0-a4d9-84d46ce4f54a Hungary | |
| 45a60c56-0fb6-4807-a2ce-d1de75486d0d Spain | |
| 24f587e3-e84f-4197-adb9-1c71d0691833 Denmark | |
| 2d632764-3408-4d1e-8305-48b523e3d346 Poland | |
| c269b66e-787d-41c9-afea-f87c8b54ca1f Sweden | |
| d7e1774a-741c-40aa-8925-16908573fa7f Germany | |
| 4673cff4-bb98-4bb4-938e-0bacca9ec135 Hungary | |
| fc9e64f1-f009-4b1d-ab77-6e36af57bffd Estonia | |
| 2a15bfd1-b131-4b0a-a8eb-500d98da51ac Greece | |
| ad696c7d-4edd-4607-9a0b-f5702ad4f034 Belgium | |
| 06004218-fd5c-4164-bdb8-321a2ee760a8 Netherlands | |
| ada70b66-a31d-45df-a30d-9b79485ed447 Poland | |
| af71137c-3e3f-46a7-942c-47737772f4b2 France | |
| 4a475c02-2a15-4d24-87c2-a1cfad747167 Germany | |
| 7f8d2249-a199-497d-9e4a-cdcf1542f674 Germany | |
| 5cdb0a49-0fa7-410d-a1f7-072c321364d5 Croatia | |
| d309f89e-c29d-48da-bf17-a1a95b1b4959 Czech Republic | |
| fa5f00fa-5546-4b91-b9ed-0f2c2acd736c Sweden | |
| ade8dda3-e2b5-404a-8651-43fc9b883879 Germany | |
| 94f4fade-9295-441f-a850-f7c4ab50af00 Poland | |
| 9cb603a3-8cab-42ff-8a10-49a5a8e89f9b Norway | |
| 1c5c770c-2f75-4923-bf12-21bfc34e7f4d Belgium | |
| 4a5e398f-9252-4d0e-b063-943b258d64c0 France | |
| dc06fcab-1e75-40df-ae4d-d4bfe7c026ed Finland | |
| 6ffbc652-ce20-4a8a-8390-db8472e47007 Bulgaria | |
| 93017162-0b5b-4da2-9242-3b72e715ddfe Portugal | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VWERAC000A000000XX |
| EAN | 8015644764234 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 60 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 67 kg |
| Package Level 1 EAN | 8015644764234 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | W |
| CAD Dimensional Drawing | 1SDH001252R0433 |
| Technical | |
| Connecting Capacity | 4000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 900 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0102 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
