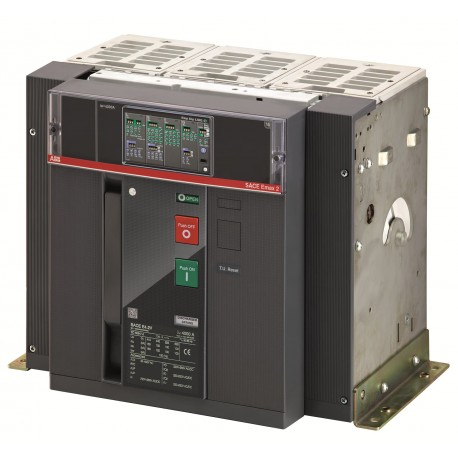

1SDA071221R1 ABB E4.2V 4000 Ekip Dip LI 3p F HR
1SDA071221R1
071221
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This is the 1SDA071221R1 ABB E4.2V 4000 Ekip Dip LI 3p F HR, an air circuit breaker utilized for high-current power distribution and comprehensive system protection in industrial plants and commercial buildings. Heavy-duty air circuit breakers handle main incoming supplies and large feeder circuits, offering precise electronic trip units for selective fault clearing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 3bc060e7-331b-4845-9578-43281338fad7 Italy
- Simplified SCIP: 758b5082-2d2b-4f1f-ae5d-469d5df66d7e Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VWERBA000A000000XX
- EAN: 8015644750718
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 3bc060e7-331b-4845-9578-43281338fad7 Italy |
| Simplified SCIP | 758b5082-2d2b-4f1f-ae5d-469d5df66d7e Germany |
| 9668a536-c52e-4a7d-9f8e-db8919e7cbfa Poland | |
| 52319acc-f753-4102-aef8-036a88d129e4 Poland | |
| fe7c270c-478c-4126-9bd8-60e958bfdef0 Czech Republic | |
| 34a54260-5b83-4728-b875-6555eb9b63d4 Sweden | |
| 03b8af72-3cec-420d-a13f-36c25da53f21 Portugal | |
| 7be4ba70-b98d-4c75-9027-ff95aaa462cc Belgium | |
| b1b81fbb-e154-4b29-899c-ba99f31e467d Spain | |
| 8091c1fd-2aa2-4e25-907c-9c27ec34c2dc Hungary | |
| dfe95a3c-7fab-49f4-9570-e47857a771a1 Norway | |
| f0969fc5-4e9f-4cee-a445-9c3f7209edb2 Poland | |
| aec79f5e-aeb0-4633-a820-588845b43b1b Bulgaria | |
| e1a8c640-14bf-4b10-ac51-3a84a588518a Germany | |
| b9c2e1a2-4604-45bc-aab4-1f6798d9ae95 Germany | |
| 8033ee67-cee6-431c-8d6d-51675d222a97 Croatia | |
| cc3dc7df-b4c6-4ea1-9513-54d9055cdd1c Denmark | |
| 8c3a1773-d9c2-4044-a112-6381ab1f2630 Germany | |
| 0fbca3c1-dfb4-4d36-b5c8-9bf327f7df7e Germany | |
| 56b7f8d7-b486-4565-aee3-bae6dd71c783 Sweden | |
| 26f6b73d-11b2-400e-a474-af64f3a0432e Belgium | |
| 1e47c9f1-e8ce-44f1-a5b8-24632d9f4c5f Estonia | |
| 3271c045-d8ba-458f-bc1a-52a299c34de5 Netherlands | |
| 6cf4a534-a345-428f-ac45-e8fe91a8a032 Finland | |
| dc3aa9d8-547c-426e-bcf4-59f8b49a0110 Greece | |
| badf12d3-3013-44f1-86a0-92dadbfbe89a France | |
| ad904118-be52-4035-8d02-a95dab4d8e64 France | |
| 20786fcd-b845-44d3-b834-bc41c7188db3 Hungary | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VWERBA000A000000XX |
| EAN | 8015644750718 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644750718 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Connecting Capacity | 4000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Ue = 500 ... 690 V 4000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 15000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 465 W |
| Rated Current (In) | 4000 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
