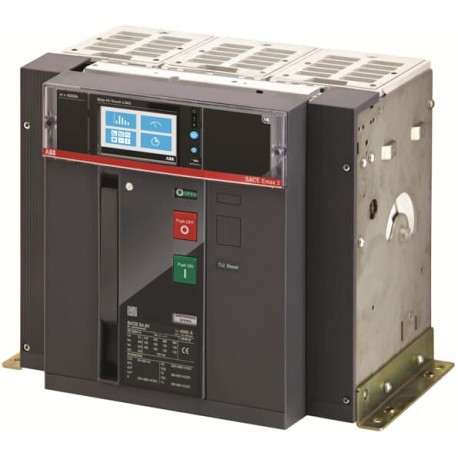

1SDA071176R1 ABB E4.2V 3200 Ekip Touch LSIG 3p F HR
1SDA071176R1
071176
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 1SDA071176R1 ABB E4.2V 3200 Ekip Touch LSIG 3p F HR is an advanced air circuit breaker designed to handle demanding electrical power distribution loads. Industrial plants depend on these high-capacity protective devices to ensure reliable fault isolation and grid stability.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 0495185d-eae4-4558-8ee4-e472df76de13 Italy
- Simplified SCIP: a78d2800-a3fe-422a-8ab4-94f1fe128201 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VVENBF000A000000XX
- EAN: 8015644750268
- Minimum Order Quantity: 1 piece
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 0495185d-eae4-4558-8ee4-e472df76de13 Italy |
| Simplified SCIP | a78d2800-a3fe-422a-8ab4-94f1fe128201 Germany |
| 8faa276a-989a-47f2-b147-3c7a3a4d15ae Germany | |
| 93b897a4-108e-4373-a56a-680b76c43559 Bulgaria | |
| 0469dd29-4ebd-49e9-8ec7-aad2c9a1fa95 Germany | |
| d6ee42a5-764d-496b-b54c-2aa636b44d0b Germany | |
| 2a78f008-ab52-48a9-9ebf-82b0a1e172c7 France | |
| efd524f4-1dbf-4a1c-b734-2b0d8f5c7306 Croatia | |
| 034887a5-10f3-443c-91bd-76e36968b386 Spain | |
| cef958ea-ddb5-458b-9dab-2974d8a5e977 Belgium | |
| 06e1cbe2-8a3e-415e-8d38-6eb89298122a Poland | |
| f4c74e90-42bd-4ffe-bd48-a3b9c9e836a0 Poland | |
| 10762746-a006-449c-adef-0a0171b240d6 Czech Republic | |
| ab8140bc-ce60-4ee0-8838-e18de8c338dd Sweden | |
| 58ec1b49-10d1-4129-a93c-7a68faf7e897 Portugal | |
| e1e56f06-7f20-4afa-86f4-f3bb4a0fcd96 Hungary | |
| 7af288be-f7a5-48cc-acc1-17adfcdd49d2 Hungary | |
| 5ddc3f95-e9e1-46c5-9fae-48bd9e525c17 Poland | |
| 923827ba-03e3-48e9-8d19-0910a6a7418f Norway | |
| 4018609f-1217-44b5-a6c3-29a46151f5ec Sweden | |
| 611d3db3-171f-4539-a718-049b29d70750 Belgium | |
| aec8a415-4af6-4dba-8750-4347bf72651c Estonia | |
| 9c90e0b2-4fd0-4cbc-af4f-4d734f38cd0e Netherlands | |
| eda19fac-d691-443a-82a4-6b646418b5f4 France | |
| 7f92b99f-061a-49cf-851b-2e6e6651f2a3 Greece | |
| 7994be19-3bf2-4314-8703-77d1f3fd337f Finland | |
| 49ee0786-8596-459b-928b-dc126d38904a Denmark | |
| 19522dfb-2e44-4d3c-8384-cb0e20b50f2f Germany | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VVENBF000A000000XX |
| EAN | 8015644750268 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644750268 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 7000 cycle |
| Ue = 500 ... 690 V 7000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | Main Circuit M12 |
| Release | Ekip Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
