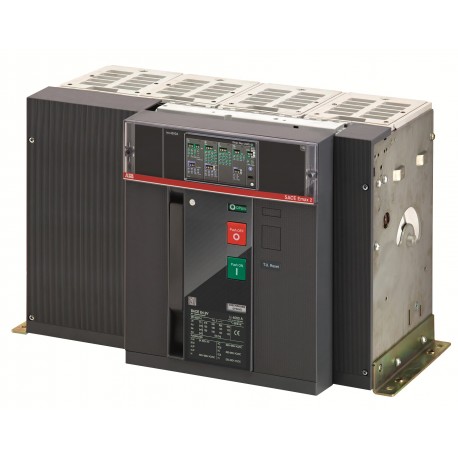

1SDA071801R1 ABB E4.2V 3200 Ekip Dip LI 4p F HR
1SDA071801R1
071801
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for heavy commercial and industrial power distribution, the 1SDA071801R1 ABB E4.2V 3200 Ekip Dip LI 4p F HR operates as an air circuit breaker capable of safely interrupting high fault currents. Main switchboards use components of this caliber to provide selective coordination, protect downstream assets, and isolate electrical circuits safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: de0d8263-12e5-4d81-a7d2-097d79f143fc Italy
- Simplified SCIP: 6b2f8743-304f-48eb-9af2-10d662b38465 Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: ZCVVENBA000A000000XX
- EAN: 8015644756512
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | de0d8263-12e5-4d81-a7d2-097d79f143fc Italy |
| Simplified SCIP | 6b2f8743-304f-48eb-9af2-10d662b38465 Germany |
| 576bbcfe-9add-4932-8d89-51837509a89f Poland | |
| 181d4fc2-18b7-4bcc-b0f5-9f405ee1091a Hungary | |
| 4dc16606-e55b-40a5-b06f-a532d0a535a2 Spain | |
| 0d79cf62-c0c0-4567-80df-4f5cf45c88cf Belgium | |
| 88fad418-0935-4a2b-a4c9-287d0faa3ed4 Hungary | |
| 5ba07bc3-5494-4701-8d16-f7bcd7c32cff Poland | |
| 7a7cbc96-4c99-4bc6-8fa2-ae8203a22bb4 Norway | |
| 67d6e13b-1b9c-46c4-9589-fe3c8a49a499 Czech Republic | |
| c279f1ee-f171-4188-a779-60233b73551a Croatia | |
| a0523513-2fc4-4e47-a6f0-c771bfa1731d France | |
| 72c50a09-4ddd-403e-b84f-56ae9774fbf4 Germany | |
| dc32ebeb-47eb-4597-a343-b2038cc54408 Denmark | |
| c2fb8a8b-17aa-4d99-a7b0-4121018bd401 Germany | |
| 00ac4056-e260-49ce-b552-ec009166bbfa Finland | |
| 30bcd630-0b20-4fcc-9921-5b95ad20be6f Greece | |
| d70463f1-3bec-4e79-a1f0-f8eeecde6616 Estonia | |
| 6a262bf2-7223-4afe-8b5e-c017c9225f69 Netherlands | |
| 554774cf-55bd-4c50-ae6f-0dce837e0b99 France | |
| 0042b1a0-02ac-49be-9168-97f9e1679340 Germany | |
| 5a60fe98-8ff5-4db4-9ea5-402b1d2e9a23 Germany | |
| 2e375bc7-6585-4a9b-93b8-64ab37edc463 Belgium | |
| 8d32a9de-2a3c-48ad-8151-44444ef8a0fe Sweden | |
| b7cd9fc7-7ca2-4a61-816a-e8ad703fc43b Sweden | |
| d22abbc6-0e17-4952-be10-541ed7a0b3d8 Bulgaria | |
| 5e589e9c-126f-4742-bd6c-31f2d62b967c Portugal | |
| 936fa078-813d-4faf-898e-cfe79ed3df97 Poland | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | ZCVVENBA000A000000XX |
| EAN | 8015644756512 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 510 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 70 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 785 mm |
| Package Level 1 Gross Weight | 77 kg |
| Package Level 1 EAN | 8015644756512 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0197 |
| Technical | |
| Connecting Capacity | 3000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 7000 cycle |
| Ue = 500 ... 690 V 7000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Neutral Pole Current ([%Iu]) | 100 % |
| Number of Poles | 4P |
| Power Loss | 425 W |
| Rated Current (In) | 3200 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 3200 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Dip LI |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
