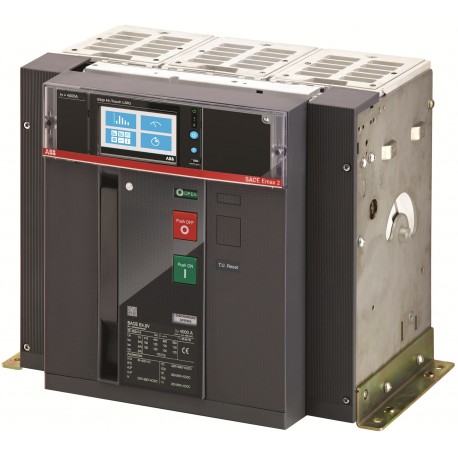

1SDA071129R1 ABB E4.2V 2500 Ekip Hi-Touch LSIG 3p F HR
1SDA071129R1
071129
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An air circuit breaker, such as the Abb 1SDA071129R1 ABB E4.2V 2500 Ekip Hi-Touch LSIG 3p F HR, serves as a primary protective device in high-voltage switchgear assemblies, preventing catastrophic electrical failures. Industrial facilities rely on these robust breakers to isolate faults and control power distribution reliably.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 95976587-626e-4157-bb73-a9fb528df1ac Italy
- Simplified SCIP: 406ebdc8-87c2-404d-ae47-6a828886090f Germany
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VUELBK200A000000XX
- EAN: 8015644749798
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 95976587-626e-4157-bb73-a9fb528df1ac Italy |
| Simplified SCIP | 406ebdc8-87c2-404d-ae47-6a828886090f Germany |
| c4284d30-82f5-4b95-bd89-8507db388d8d Denmark | |
| 13e09db0-35ed-4a76-b6a3-9a8f160253ff Belgium | |
| 596e800d-3da7-4e1a-82e6-895977a82b72 Finland | |
| 467409f2-6157-4707-80e6-40a3c2a97fab Norway | |
| 22dc96eb-dfe9-465f-82b8-0a9eac88dff4 Poland | |
| 42442733-c55c-44a0-a0b0-53c66259f9fc Germany | |
| ae2a59ef-d24d-4e58-8176-39ae3716aaf2 Hungary | |
| 0cb480ad-2b0f-4209-a1ac-5f4f076d66fb Greece | |
| f077d468-1ad1-40c5-ba3d-053981e57de1 Estonia | |
| 27aaba13-cdaf-41a4-826f-71e14f06da8c Portugal | |
| f2083e5b-e5fb-4e70-bc4a-48e241ac6516 Bulgaria | |
| 1bfc5902-43a1-4916-8aec-60f3fdc0f987 Sweden | |
| 9b566055-de14-4319-ad1f-5d86702b9759 Poland | |
| 7e33a5e1-4f5a-4ca1-a4fd-7456d3c0cb1d Germany | |
| eedea8e3-b34b-471f-8118-e312eb143f70 Croatia | |
| 0b556832-551d-484d-845a-eb1aa374ad08 Netherlands | |
| aff9f237-0a7c-4020-b617-0d6618cb408b Poland | |
| d9a7edab-58ed-4c4f-89bc-a305ae2f5833 Belgium | |
| 6e09bc76-c164-47b7-8aeb-507f2c6c6c91 Czech Republic | |
| 172d162c-81cd-403e-a7b3-951a9592a832 France | |
| b1d68cd8-36b6-4b63-8223-7c6b6c68aa14 Hungary | |
| db0fe510-57d0-427c-bd51-e3a0e0b9f081 Germany | |
| 97069244-96d7-4661-a5a2-4a75d5c6b933 Sweden | |
| cf580544-e29e-4d5f-8d41-f797a40dd3a1 Germany | |
| 1e77741e-7404-4205-85dd-eb03cc0b5ddc France | |
| d701cfe3-9a75-47c7-a5ca-eec527cabbd9 Spain | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VUELBK200A000000XX |
| EAN | 8015644749798 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644749798 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| CAD Dimensional Drawing | 1SDH001252R0171 |
| Technical | |
| Connecting Capacity | 2000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 2500 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip Hi-Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Terminal Type | Bolt |
| Tightening Torque | 70 N·m |
| Certificates and Declarations | |
| ATEX Certificate | No certification needed |
| CSA Certificate | No certification needed |
| CSA Certificate (Intrinsic Safe) | No certification needed |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| Mechanical Drawings | 1SDH001001R0100 |
| Wiring Diagram | 1SDM000091R0001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
