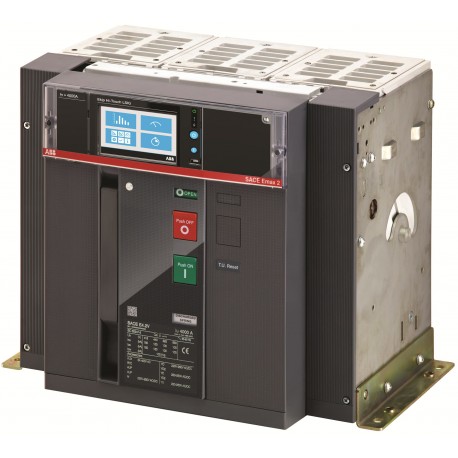

1SDA071127R1 ABB E4.2V 2500 Ekip G Touch LSIG 3p F HR
1SDA071127R1
071127
ABB
1 Pcs.
Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ABB air circuit breaker functions as a heavy-duty protection device engineered for high-capacity electrical distribution systems and primary switchgear. Plant operators utilize these advanced units to manage large electrical loads and ensure system safety.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- ABB EcoSolutions: Yes
- ABB Site Meeting Group Waste To Landfill Target: UL 2799 Zero Waste To Landfill Validation available
- End Of Life Disassembling Instructions: 9AKK108468A2363
- Environmental Product Declaration - EPD: 9AKK108468A1904
- Extended Product Lifetime: Lifetime Extension Services are Offered
- Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 79.3 %
- REACH Declaration: 9AKK108466A1425
- RoHS Declaration: 9AKK108466A1424
- RoHS Information: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Conflict Minerals Reporting Template (CMRT): 9AKK108467A5658
- Toxic Substances Control Act - TSCA: 9AKK108467A8326
- SCIP: 6409fcdc-aba3-4d91-8b85-b00ad4c86c20 Italy
- Simplified SCIP: 4ff12a58-d22a-46ee-8f95-75ebc41daa30 France
- Environmental Information: 9AKK108467A6707
- Order Code US and Canada: Z4VUELBN200A000000XX
- EAN: 8015644749774
More info
▲| ABB EcoSolutions | |
|---|---|
| ABB EcoSolutions | Yes |
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 9AKK108468A2363 |
| Environmental Product Declaration - EPD | 9AKK108468A1904 |
| 9AKK108468A1910 | |
| Extended Product Lifetime | Lifetime Extension Services are Offered |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops - Standard EN45555 - 79.3 % |
| Material Compliance | |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Declaration | 9AKK108466A1424 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| SCIP | 6409fcdc-aba3-4d91-8b85-b00ad4c86c20 Italy |
| Simplified SCIP | 4ff12a58-d22a-46ee-8f95-75ebc41daa30 France |
| 722947fc-8c52-42b9-a35a-22ec19b68040 Hungary | |
| 8e4cdc18-9149-49a0-8ba0-ab2012b240d1 France | |
| 75bbe695-7ace-4115-bfac-495a910f78bf Germany | |
| 27f43378-5b05-4190-b1d1-cf69f494f81e Sweden | |
| a63f6ca6-a01f-4fe9-9f89-1ac17812203a Germany | |
| e68bda0c-83d0-47d4-8212-5e1ac27d5d3b Spain | |
| 3aac24d1-80ab-43ed-8d05-48436cd8f7ea Belgium | |
| d0eeeb1d-e979-4509-a1bc-c7b1fd531890 Finland | |
| d4cf877d-fd32-4352-aa61-2d9f530dbe9b Norway | |
| e723db33-6f10-4791-86c2-13093f12f107 Belgium | |
| 6de13428-7f32-4b45-af92-4820bcf5c0c7 Germany | |
| 264f5948-18a0-4e69-b9c9-d63e07c45f3b Poland | |
| 30344da4-3ea8-4a61-a501-15dc24b6da45 Germany | |
| 09b39e65-5e2f-45c2-ad3f-926348d4bbb9 Greece | |
| 7af82b4f-02b2-4300-8054-8a061a7f8a95 Portugal | |
| e2b783ab-3ee0-40c1-a1eb-2f2565cb23ea Hungary | |
| a42da69a-2735-4cd6-b587-5e2eeccb1e15 Poland | |
| 87dbeff1-2c69-4043-bde1-b770fc103251 Netherlands | |
| 69b5f60d-e518-4c0e-aa9d-88ad9ae01abe Croatia | |
| 9d512b6e-d3c6-40f0-9bed-db59c6bcc5f9 Estonia | |
| f6c91444-066c-45f4-bfb7-ea75bffefe84 Denmark | |
| ea55d33c-4fce-4cdc-b1bc-368df9c04ef6 Germany | |
| e600203d-b8fb-4ea3-b515-caf3f0cfbd1a Czech Republic | |
| f288c364-5a14-43b3-8159-b467b96f485a Poland | |
| 3861bfbf-525a-4c5f-91a8-2935b85b7aa4 Bulgaria | |
| 511349be-e48c-419c-bc49-68b98fc66635 Sweden | |
| Environmental | |
| Environmental Information | 9AKK108467A6707 |
| Ordering | |
| Order Code US and Canada | Z4VUELBN200A000000XX |
| EAN | 8015644749774 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Dimensions | |
| Product Net Width | 384 mm |
| Product Net Height | 371 mm |
| Product Net Depth / Length | 270 mm |
| Product Net Weight | 56 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 515 mm |
| Package Level 1 Height | 610 mm |
| Package Level 1 Depth / Length | 615 mm |
| Package Level 1 Gross Weight | 63 kg |
| Package Level 1 EAN | 8015644749774 |
| Additional Information | |
| Product Main Type | SACE Emax 2 |
| Product Name | Air Circuit Breaker |
| Product Type | Air Circuit Breaker |
| Version | F |
| Technical | |
| Connecting Capacity | 2000 mm² |
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 8000 cycle |
| Ue = 500 ... 690 V 8000 cycle | |
| 20 cycles per hour | |
| Mechanical Durability | 20000 cycle |
| 60 cycles per hour | |
| Number of Poles | 3P |
| Power Loss | 425 W |
| Rated Current (In) | 2500 A |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 150 kA |
| (230 V AC) 150 kA | |
| (380 V AC) 150 kA | |
| (400 V AC) 150 kA | |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (660 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 100 kA |
| for 3 s 75 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 150 kA |
| (415 V AC) 150 kA | |
| (440 V AC) 150 kA | |
| (500 V AC) 100 kA | |
| (525 V AC) 100 kA | |
| (690 V AC) 100 kA | |
| Rated Uninterrupted Current (Iu) | 2500 A |
| Rated Voltage (Ur) | 690 V |
| Recommended Screw Driver | M12 |
| Release | Ekip G Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | V |
| Standards | IEC |
| Sub-type | E4.2 |
| Suitable for IT Networks | Yes, 690V |
| Terminal Connection Type | Rear flat Horizontal |
| Certificates and Declarations | |
| Data Sheet, Technical Information | 1SDC200023D0209 |
| Declaration of Conformity - CE | 9AKK106713A5545 |
| EU Data Act Compliance Declaration | 1SDH002560A1001 |
| Instructions and Manuals | 1SDH001000R0002 |
| Instructions and Manuals (Part 2) | 1SDH001316R1002 |
| External Classifications and Standards | |
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| ETIM 10 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
| Object Classification Code | Q |
| UNSPSC | 39121615 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
