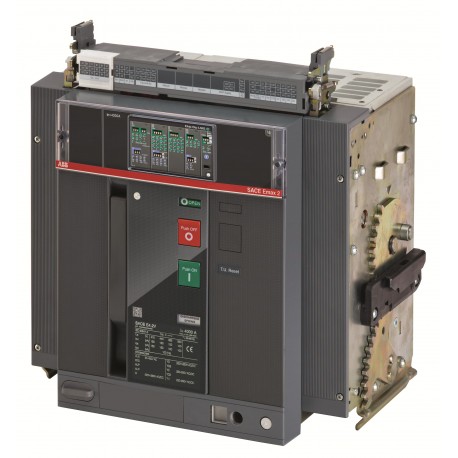

ABB 1SDA072453R1 1SDA072453R1 ABB E4.2V 2000 Ekip Dip LSIG 3p WMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1SDA072453R1 ABB E4.2V 2000 Ekip Dip LSIG 3p WMP

1SDA072453R1

072453

ABB

1 Pcs.

E4.2V 2000 Ekip Dip LSIG 3p WMP

Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
Circular Value
Circular Design Principles Recyclability RateDesign for Closing Resource Loops - Standard EN45555 - 79.3 %
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
End of Life Instructions9AKK108468A2363
Group Waste to Landfill TargetUL 2799 Zero Waste To Landfill Validation available
Toxic Substances Control Act - TSCA9AKK108467A8326
Eco Transparency
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Environmental
Environmental Information9AKK108467A6707
REACH Declaration9AKK108466A1425
RoHS Information9AKK108466A1424
RoHS StatusFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPd6935590-711f-4da6-95d9-25fa7cc3faf1 Italy (IT)
Simplified SCIPb74c24ed-5fc1-4c98-96e4-e9ed581ab1a6 Germany (DE)
55b23abf-24a1-4207-8b14-9441abd62baa Germany (DE)
cada46dd-102d-469b-90eb-fe8cbcb2d2bd Denmark (DK)
4fca8830-f0c8-412d-a589-3d5f5fd4c325 Hungary (HU)
162ba9d6-4109-4f30-b3c7-59901fa4c872 Estonia (EE)
f97c17b6-2c54-4b38-a0a2-4e80b5a9cae4 Greece (GR)
8230c90e-4ba5-4e68-9b15-be7472a263ea Portugal (PT)
1e440742-5231-47f0-9778-00dd9d5d55eb Bulgaria (BG)
09f31c44-f6bb-42b2-b973-d8296cdb13ad Sweden (SE)
ef26c656-2795-4a80-a312-561affeef145 Norway (NO)
a79d716d-6944-4a6b-ac51-461728ea46aa Poland (PL)
041dbe2f-8cbf-4886-922a-a8919675c0c1 Germany (DE)
c2d13212-b8bd-4360-a755-da7a47878fa6 Netherlands (NL)
160be82a-7903-4ab5-adbe-6287fed41a73 Spain (ES)
6fb29024-b680-427d-bc44-b1faefd7f64e Hungary (HU)
077ebe04-d4fc-44fc-b2d9-eef7be53e571 Poland (PL)
0ccda4c2-dde8-401a-9b59-ad51e347a0ef Belgium (BE)
66d70b8f-2f56-46bd-8832-5d00200b23ac Poland (PL)
8c4ec035-591d-4a4c-8b1b-a65372be2387 Sweden (SE)
2dfadc80-1a83-42ea-b29a-ed9bc8c616e0 France (FR)
e9147420-e6d8-4f06-88fe-49476dd96a33 Finland (FI)
ef23be54-53ee-49c6-a189-7ad224177f27 Belgium (BE)
6c3f86b6-ccd2-4120-99c9-bbcc0bae18e2 Croatia (HR)
2c5fa33c-90a7-4e12-8cf8-1bf92e5507cf Czech Republic (CZ)
e054d0a2-e46b-4211-b8d2-922478761660 Germany (DE)
e6a57432-f09b-4f32-99ba-7699de157d07 Germany (DE)
8a0ddfff-d71d-4309-8b9d-ef2ae9a22375 France (FR)
Ordering
Order Code US and CanadaZ4VTEKAC000A000000XX
EAN8015644763039
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width425 mm
Product Net Height425 mm
Product Net Depth / Length383 mm
Product Net Weight60 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length615 mm
Package Level 1 Gross Weight67 kg
Package Level 1 EAN8015644763039
Additional Information
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 10000 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Number of Poles3
Power Loss743 W
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Current (In)2000 A
Rated Voltage (Ur)690 V
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 150 kA
(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)2000 A
ReleaseEkip Dip LSIG
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE4.2
VersionW
CAD Dimensional Drawing1SDH001252R0433
