ABB 1SDA071731R1 1SDA071731R1 ABB E4.2V 2000 Ekip Dip LI 4p F HR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

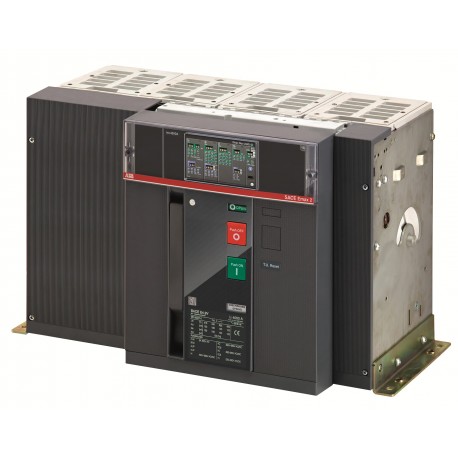

1SDA071731R1 ABB E4.2V 2000 Ekip Dip LI 4p F HR

1SDA071731R1

071731

ABB

1 Pcs.

E4.2V 2000 Ekip Dip LI 4p F HR

Automation > Power circuit-breaker for trafo/generator/installation protection
E4.2

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
ABB EcoSolutions
ABB EcoSolutionsYes
ABB Site Meeting Group Waste To Landfill TargetUL 2799 Zero Waste To Landfill Validation available
End Of Life Disassembling Instructions9AKK108468A2363
Environmental Product Declaration - EPD9AKK108468A1904
9AKK108468A1910
Extended Product LifetimeLifetime Extension Services are Offered
Recyclability Rate of the Product acc. to EN45555Design for Closing Resource Loops - Standard EN45555 - 79.3 %
Material Compliance
REACH Declaration9AKK108466A1425
RoHS Declaration9AKK108466A1424
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
Toxic Substances Control Act - TSCA9AKK108467A8326
SCIP820d8698-5690-41c6-9985-8ce99e8a0328 Italy
Simplified SCIP1bd186cc-9b42-49c6-aa09-f959cc4996cc Belgium
481f3576-2977-4738-9ac2-af74afaa756d Denmark
acec5ece-10fa-4d8d-b399-d26281001659 Germany
82b2dca4-81cc-4faf-9546-56b3d4509927 Germany
c28d0bf1-e097-4de5-a289-fa925c1cead3 Poland
14c85edc-d035-4925-b8d9-b126fa473fd1 Finland
d7227303-12b0-4053-8e71-147019cda18f Norway
a0821df7-aed5-461e-9dc5-2bcbcab9b0e1 Belgium
82f42ce9-c235-4014-a588-6ccd6f2c3235 Spain
9f038b00-b72e-4894-b1c8-82035ed94f0f Germany
d1be83e6-ac58-4cb6-af83-d915b4f7fd64 Hungary
9aabc085-0185-4d69-a7d5-d8c364d53a00 Germany
e7bf51c3-5ee6-499e-bec1-fbc0bd32bd46 Sweden
a66b7967-2d91-4775-a303-aa0573614522 France
36b415d3-c6a1-4960-b735-6fab52c0264c Poland
2c0d50b1-fb2f-4daf-b544-517c43721d63 Netherlands
49b21ecc-2cb5-4a57-a59c-dd218e823e00 Germany
92e5c87a-3654-46da-932e-a41ee7e2aba3 Czech Republic
09bc4362-3a4b-4598-a07c-911558379752 Croatia
b117a6f4-629f-4e7e-adc3-0c1fde1ba584 Hungary
1799d06a-9728-4225-959d-1fcf998d3f52 Estonia
13836dec-7c17-4670-888e-9d47c35b1151 Greece
673d7e65-b8e6-4859-bc30-2825160feb7a Portugal
c5da2432-fa30-4b40-b2c8-af897b887421 Bulgaria
d4bb2db6-e6ea-442d-b8fc-8c679e26b805 Sweden
fdeb53bf-589e-49f2-80fb-5902da2589ea Poland
986b7414-5817-42fd-a42a-4510e21d35c4 France
Environmental
Environmental Information9AKK108467A6707
Ordering
Order Code US and CanadaZCVTEKBA000A000000XX
EAN8015644755812
Minimum Order Quantity1 piece
Customs Tariff Number85362090
Dimensions
Product Net Width510 mm
Product Net Height371 mm
Product Net Depth / Length270 mm
Product Net Weight70 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width515 mm
Package Level 1 Height610 mm
Package Level 1 Depth / Length785 mm
Package Level 1 Gross Weight77 kg
Package Level 1 EAN8015644755812
Additional Information
Product Main TypeSACE Emax 2
Product NameAir Circuit Breaker
Product TypeAir Circuit Breaker
VersionF
CAD Dimensional Drawing1SDH001252R0197
Technical
Connecting Capacity1600 mm²
Current TypeAC
Electrical DurabilityUe =< 440 V 10000 cycle
Ue = 500 ... 690 V 10000 cycle
20 cycles per hour
Mechanical Durability20000 cycle
60 cycles per hour
Neutral Pole Current ([%Iu])100 %
Number of Poles4P
Power Loss425 W
Rated Current (In)2000 A
Rated Impulse Withstand Voltage (Uimp)acc. to IEC 60947-2 12 kV
Rated Insulation Voltage (Ui)AC 1000 V
Rated Operational Voltage690 V AC
Rated Service Short-Circuit Breaking Capacity (Ics)(220 V AC) 150 kA
(230 V AC) 150 kA
(380 V AC) 150 kA
(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 100 kA
(660 V AC) 100 kA
(690 V AC) 100 kA
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics)100 %
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 100 kA
for 3 s 75 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu)(400 V AC) 150 kA
(415 V AC) 150 kA
(440 V AC) 150 kA
(500 V AC) 100 kA
(525 V AC) 100 kA
(690 V AC) 100 kA
Rated Uninterrupted Current (Iu)2000 A
Rated Voltage (Ur)690 V
Recommended Screw DriverM12
ReleaseEkip Dip LI
Release TypeEL
Short-Circuit Performance LevelV
StandardsIEC
Sub-typeE4.2
Suitable for IT NetworksYes, 690V
Terminal Connection TypeRear flat Horizontal
Terminal TypeBolt
Tightening Torque70 N·m
Certificates and Declarations
ATEX CertificateNo certification needed
CSA CertificateNo certification needed
CSA Certificate (Intrinsic Safe)No certification needed
Data Sheet, Technical Information1SDC200023D0209
Declaration of Conformity - CE9AKK106713A5545
EU Data Act Compliance Declaration1SDH002560A1001
UL CertificateNo certification needed
VDE CertificateNo certification needed
Mechanical Drawings1SDH001001R0100
Wiring Diagram1SDM000091R0001
Instructions and Manuals1SDH001000R0002
External Classifications and Standards
ETIM 9EC000228 - Power circuit-breaker for trafo/generator/installation protection
ETIM 10EC000228 - Power circuit-breaker for trafo/generator/installation protection
IDEA Granular Category Code (IGCC)4926 >> Air circuit breakers
Object Classification CodeQ
UNSPSC39121615
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
eClassV11.1 : 27370409

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
